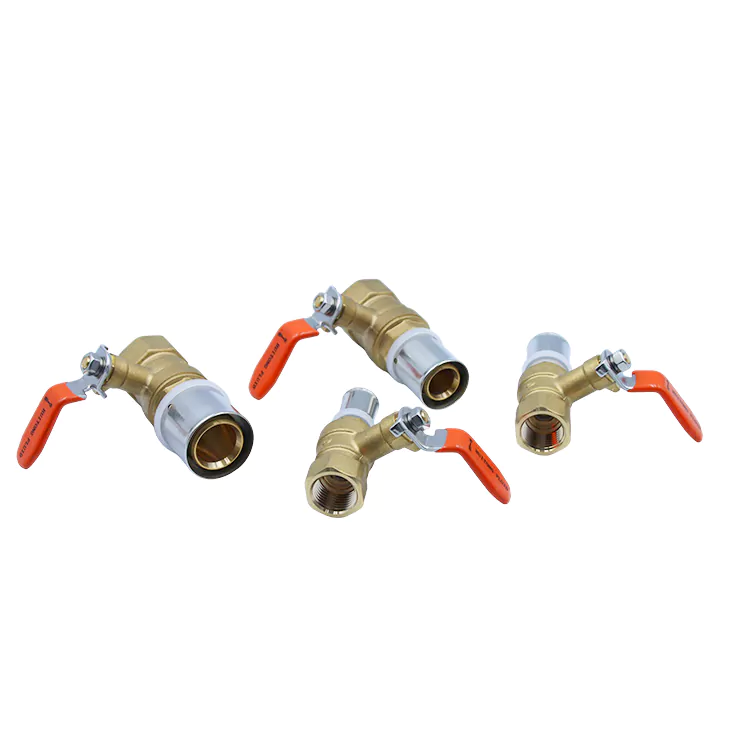

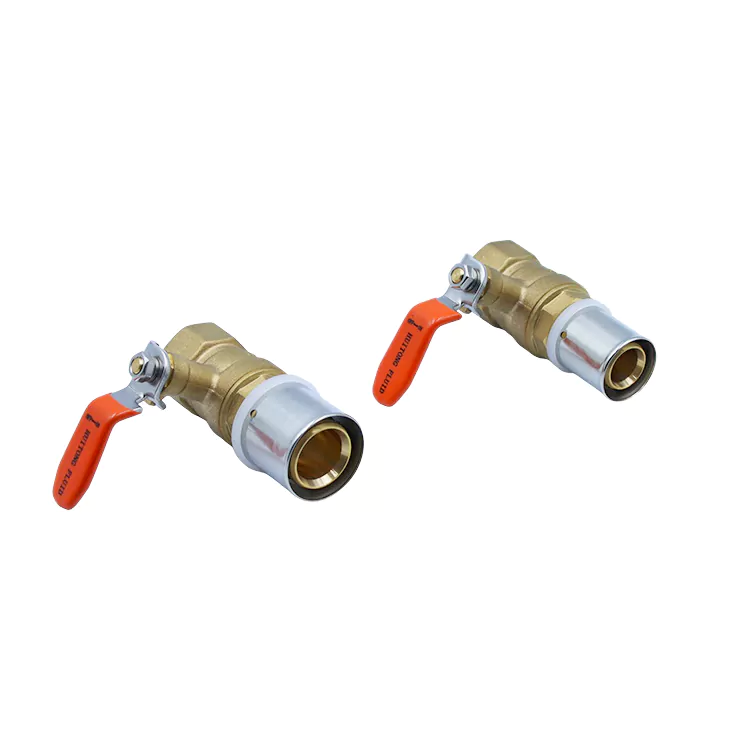

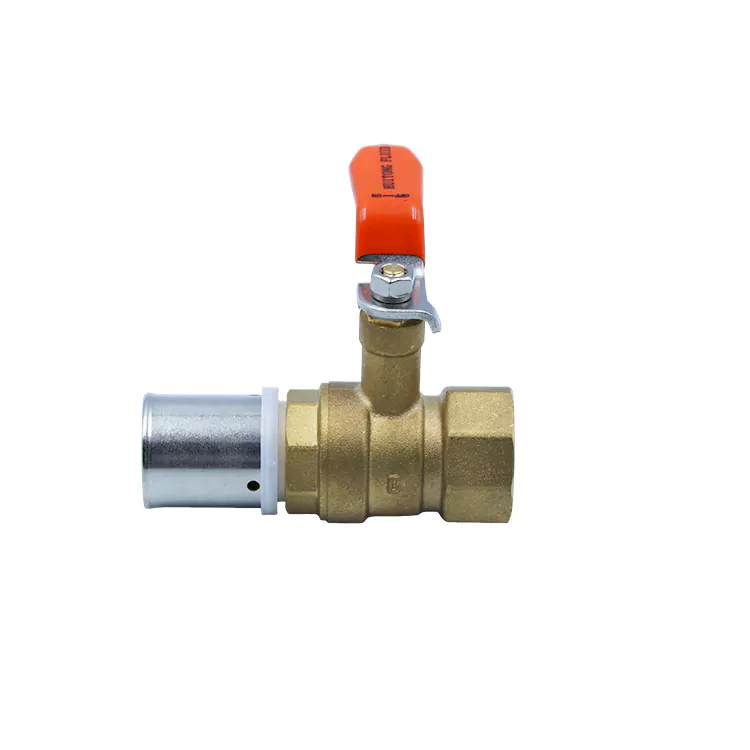

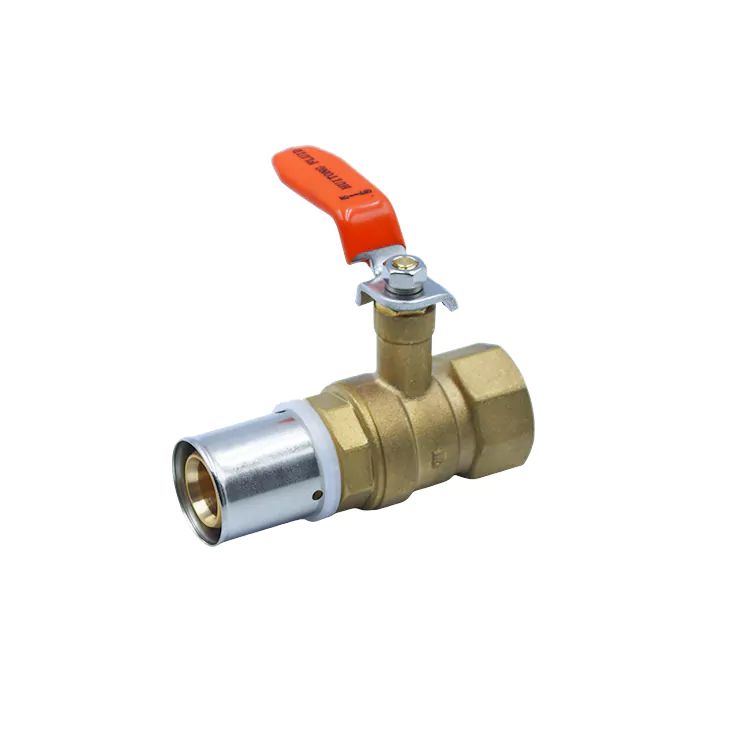

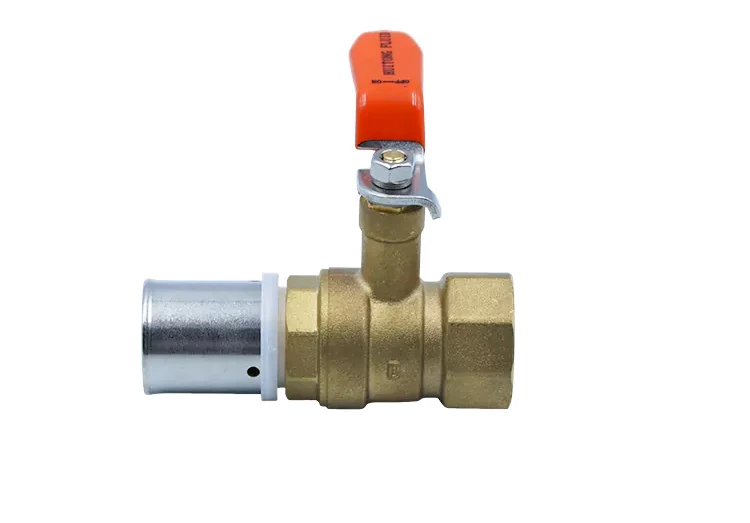

Brass Press Female Thread Ball Valve for Fire Fighting Pipes

Our Brass Press Female Thread Ball Valve for Fire Fighting Pipes features lead-free forged brass construction and integrates traditional female threading with hydraulic press-fit technology. It balances installation efficiency with the long-term safety of the piping network, making it ideal for sprinkler and fire hydrant systems.

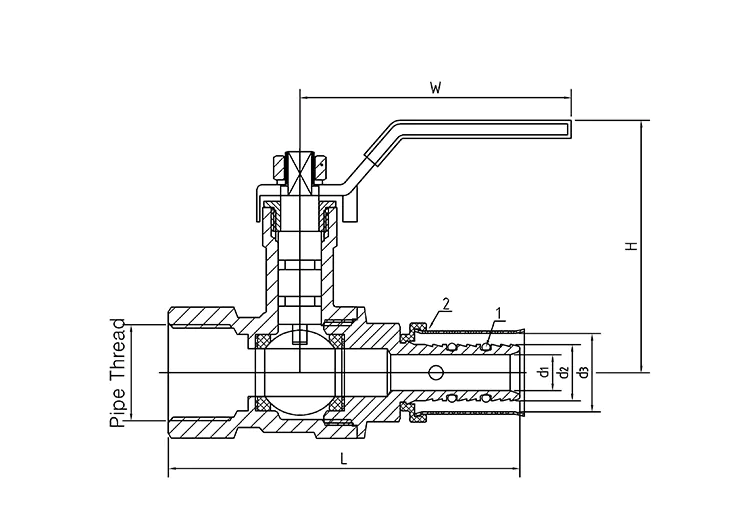

Technical parameters

Core Materials and Pressure Performance

Made from HPb59-1 lead-free forged brass, the valve features a thickened body design that stably withstands a working pressure of 1.6 MPa (PN16) and effectively resists corrosion in the humid environments typical of fire-fighting piping networks.

The valve body undergoes high-temperature tempering and precision machining to ensure high strength under long-term hydrostatic pressure, meeting standards for lead-free, pressure-resistant materials in fire-fighting water supply systems.

Available in sizes ranging from DN15 to DN50, the valves are fully compatible with various thin-walled stainless steel fire-fighting piping networks, ensuring both installation efficiency and long-term system safety.

Connection Methods and Sealing Technology

One end features a precision-standard female threaded interface for flexible connection to various threaded fire-fighting fittings, while the other utilizes a specialized press-fit interface equipped with a thickened stainless steel grip ring and an aging-resistant silicone seal.

Utilizing hydraulic press-fit technology, the connection creates a tight, secure grip without the need for welding or PTFE tape. This eliminates the risk of leakage under long-term hydrostatic pressure at the source and significantly boosts on-site installation efficiency.

Internally, the valve is equipped with a high-precision, full-bore chrome-plated ball and thickened PTFE seats; this design minimizes fluid resistance and ensures bidirectional, airtight zero-leakage performance, guaranteeing smooth fire-fighting water flow.

Control Design and Structural Safety

Equipped with a 90° quick-action handle, the valve allows for the instant shut-off or activation of flow during emergencies, meeting the rigorous response-speed requirements of fire-fighting systems. The Brass Press Female Thread Ball Valve for Fire Fighting Pipes features a blow-out-proof stem design that prevents seizing—even after long periods of inactivity—ensuring reliable operation during sudden fire emergencies.

Its compact, integrated structure allows for installation in any orientation, flexibly accommodating horizontal or vertical piping layouts and simplifying on-site installation.

Application Scenarios

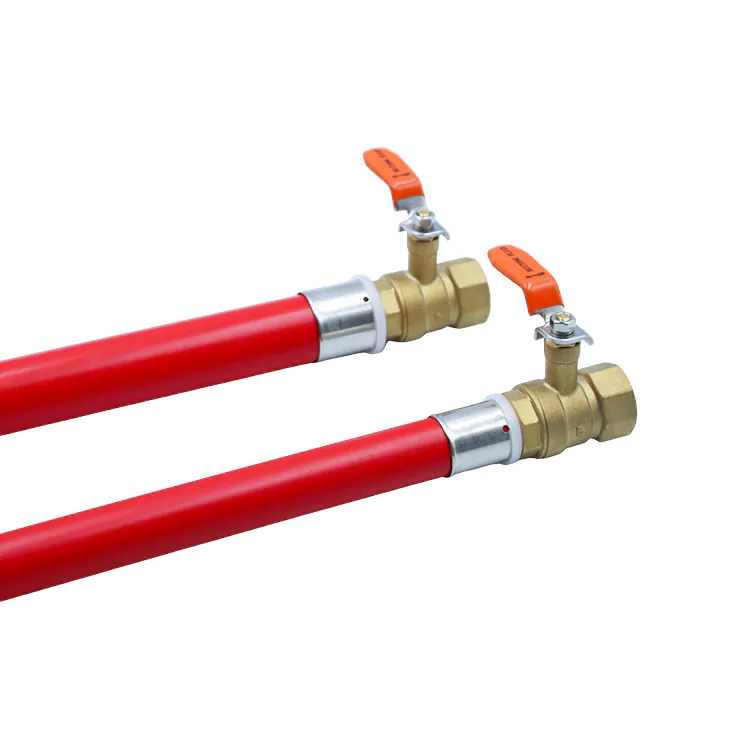

Fire Sprinkler and Hydrant Systems: Perfectly suited for thin-walled stainless steel fire piping networks; meets the shut-off and flow-diversion requirements for fire water supply in high-rise buildings, commercial complexes, and industrial facilities.

HVAC and Water Supply Engineering: Suitable for central air conditioning chilled/cooling water lines and residential tap water systems, ensuring efficient flow control.

Industrial Fluid Control: Ideal for the rapid shut-off of non-corrosive, low-pressure fluid lines (water, oil, gas) in sectors such as petrochemicals and power generation.

Usage and Maintenance Recommendations

Proper Installation: When installing the press-fit end, ensure the stainless steel grip ring and silicone seal are correctly positioned; use specialized hydraulic pressing tools and avoid forcing the connection, which could deform the valve body.

Routine Operation: Turn the handle slowly to avoid water hammer effects caused by abrupt opening or closing; after fully opening or closing, back the handle off by a quarter-turn to prevent stem deformation from prolonged stress.

Periodic Inspection: Fire safety maintenance should be performed at least quarterly; manually rotate the handle to check for smooth operation. If the stem sticks, apply a specialized lubricant, ensuring it does not come into contact with the internal sealing gaskets.

Quality Control and After-Sales Support

Strict quality control processes for fire-service valves are implemented: forged brass raw materials undergo batch-wise spectral analysis, while grip rings and seals undergo simultaneous pressure and aging resistance testing.

Every valve undergoes 100% testing for shell hydrostatic pressure, airtightness, and durability (over 10,000 cycles); press-fit connections are inspected via specialized flaw detection (referencing the GA79 standard), and thread coaxiality and engagement tightness are verified. Each product features a unique batch code for full-lifecycle traceability and comes with material reports, fire safety inspection documentation, and CE certification. The unit is covered by a 12-month manufacturer's warranty; our technical team provides guidance on press-fit installation, piping network pressure testing, and troubleshooting, alongside long-term availability of genuine replacement parts.

FAQ

Q: What are the advantages of press-fit connections over traditional threaded connections?

A: Press-fit connections eliminate the need for welding or PTFE tape, resulting in extremely high installation efficiency. They rely on a physical seal created by the interlocking of a stainless steel grip ring and a silicone gasket, effectively preventing the leakage issues often associated with traditional threaded joints under long-term static water pressure.

Q: Can the Brass Press Female Thread Ball Valve for Fire Fighting Pipes be kept in a partially open position for long periods to regulate water flow?

A: This is not recommended. Ball valves are designed for quick shut-off operations (fully open or fully closed). Keeping the valve partially open for extended periods exposes the ball and the PTFE seat sealing surface to high-velocity fluid erosion, accelerating wear and potentially causing leaks.

Q: What should I do if the handle becomes stuck and won't turn after the valve has been idle for a long time?

A: Prolonged inactivity of fire safety valves can cause the valve stem to adhere to the packing material. Valves should be operated periodically (quarterly) as part of routine maintenance. If the valve is stuck, do not force it open with a leverage bar, as this could snap the stem; instead, apply a specialized lubricant to the stem and attempt to turn it gently.
