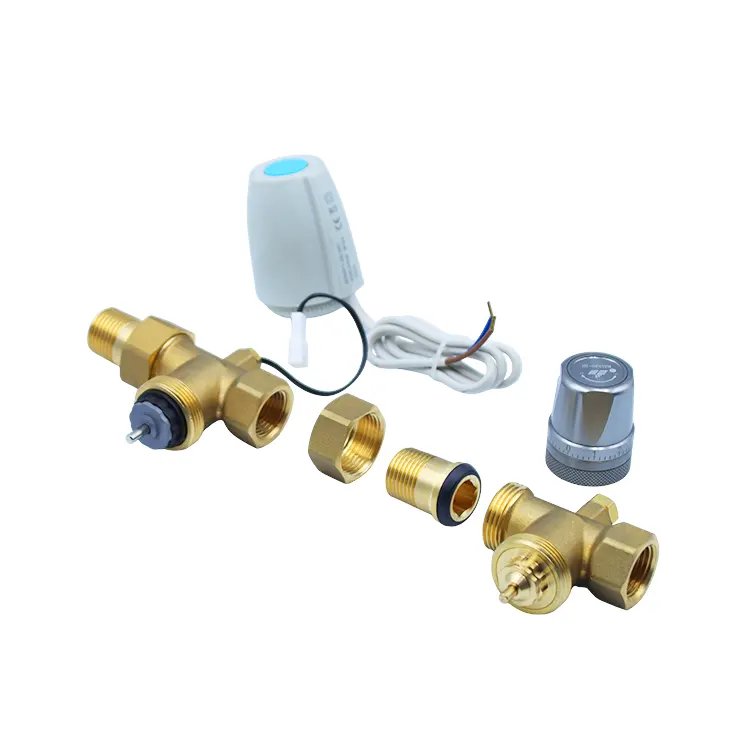

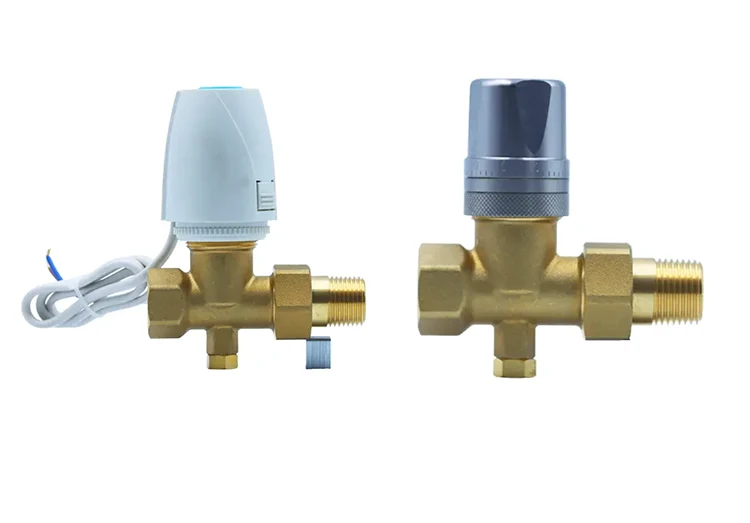

This Floor Heating Pipe Integrated Flow Control Valve is a mechanical device developed by Huitong specifically for residential and small-to-medium commercial heating systems. It is forged from a single piece of HPb59 brass and features a nickel-plated finish that resists limescale and oxidation.
It incorporates a precision-engineered valve core with clear scale markings, allowing for manual, precise fine-tuning of water flow in individual circuits. This enables rapid balancing of heating temperatures across the home, effectively resolving issues with uneven heating.
The valve body contains dual-layer, heat-resistant EPDM gaskets, ensuring leak-free performance under the pressure of long-term hot and cold water cycling. Its integrated design eliminates the need for extra adapters and reduces potential leak points, while its compact size allows it to fit easily into tight manifold cabinets.
|

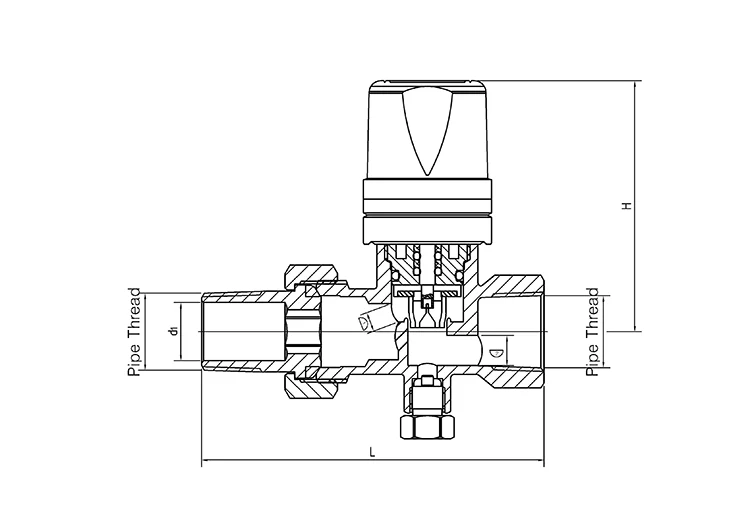

Product Specifications |
L |
H |
d1 |
∅ |
Pipe Thread |
|
|
DN |
Size |
|||||
|
15 |
1/2" |
88.2 |
64.7 |
15.0 |
5.0 |
7.75 |
Formed via hot forging with thickened walls, the material is dense and free of porosity or sand holes. It offers stable pressure resistance, is suitable for year-round hot and cold water cycling in underfloor heating systems, and resists deformation or cracking.
The entire valve body is nickel-plated to isolate the brass base material from direct contact with waterborne minerals and moisture. This effectively inhibits limescale buildup and oxidation/rust, extending the valve's service life.
Brass billets undergo batch-by-batch spectroscopic analysis to ensure no harmful heavy metals leach out and that material specifications are met, complying with environmental standards for indoor residential heating systems.
Features a specialized internal valve core with clear scale markings. Users can intuitively and precisely fine-tune the water flow for individual circuits; the adjustment settings are clearly defined and easy to operate, requiring no specialized equipment for setup.
By independently controlling the flow rate in each underfloor heating circuit, the system compensates for varying pipe resistances. This resolves issues such as rooms at the far end of the loop failing to heat up while pipes closer to the source overheat, ensuring uniform and stable heating temperatures throughout the entire home.
Balancing flow across branches eliminates localized turbulence and inefficient circulation. This reduces the load on the circulation pump and minimizes the need for continuous high-power operation, resulting in significant energy savings over the long term.
Equipped with two specialized EPDM (Ethylene Propylene Diene Monomer) gaskets designed for underfloor heating. These undergo factory-standard durability testing for thermal cycling and resist hardening, shrinking, cracking, or deformation, even during prolonged exposure to hot water exceeding 60°C.
Seals are positioned simultaneously at both the valve core and the valve body threads, ensuring high-precision fitment. This maintains an airtight, leak-proof seal even under fluctuating water pressures caused by thermal cycling, effectively eliminating the risk of slow seepage at connection points.
The sealing components have individually passed tens of thousands of high- and low-temperature aging cycles. This ensures that sealing performance remains undiminished during year-round, uninterrupted operation in residential or commercial heating applications.
The Floor Heating Pipe Integrated Flow Control Valve body and adjustment mechanism are formed as a single unit, eliminating the need for additional adapters or flow-splitting fittings. This drastically reduces the number of threaded connection points, thereby minimizing the risk of leakage at the source.
The streamlined, compact structure conserves limited space within the manifold cabinet. It allows for hassle-free installation in confined areas, such as narrow ceiling voids, vertical pipe shafts, and small residential manifold cabinets.
Both ends of the valve body feature standard threading specifications common to the underfloor heating industry, allowing for direct connection to mainstream manifolds. It is compatible with PEX and aluminum-plastic composite heating pipes, making it an ideal direct replacement for outdated fittings in both new home installations and renovation projects.
Suitable for underfloor heating in apartments and self-built homes. It requires no electronic control system; manual scale-based adjustment is simple and balances heating temperatures across all rooms. Its compact size fits easily into standard residential underfloor heating cabinets.
Ideal for commercial spaces with high usage frequency and potential pipe impurities. Manual adjustment allows for temperature balancing across different zones as needed. The integrated structure simplifies installation, making it suitable for standardized, large-scale HVAC deployment in commercial units.
Suitable for centralized underfloor heating systems in low-rise office buildings where complex building automation is not required. It achieves hydraulic balance cost-effectively. The product comes with full certification for project acceptance, meeting requirements for bidding and completion filing in small-to-medium HVAC projects.
A solution for replacing old, simple flow fittings that suffer from leaks or flow-adjustment failures. It allows for direct replacement with this integrated flow valve without altering embedded main piping, ensuring low installation difficulty and a short retrofit timeline while cost-effectively optimizing hydraulic balance.
Brass billets undergo batch-by-batch spectral analysis of chemical composition. Valve cores and high-temperature resistant EPDM gaskets undergo separate tests for thermal cycling, water pressure resistance, and durability/aging, screening out components prone to premature aging or insufficient pressure resistance.
Every integrated flow valve undergoes a full suite of tests: housing water pressure resistance, bubble-based airtightness/leak detection, and simulated durability testing involving 10,000 opening/closing cycles. These tests comprehensively verify pressure limits, sealing stability, valve core smoothness, and the accuracy of adjustment scales.
Each valve body is laser-marked with a unique production batch number. Data from every stage—forging, threading, valve core assembly, and final inspection—is archived to ensure complete traceability. Upon shipment, we provide brass material spectral analysis reports and factory hydrostatic/air-tightness certificates, meeting all requirements for residential underfloor heating inspections, commercial HVAC project completion filings, and overseas customs clearance.
All products come with a standard 12-month manufacturer's warranty covering inherent material and workmanship defects, such as brass body cracking, leaks due to assembly issues, valve core sticking, or scale/dial failure.
Professional technicians provide one-on-one guidance covering manifold flow valve assembly standards, practical dial adjustment methods, sectional pipeline pressure testing, and troubleshooting for seal leaks, thereby reducing rework time during on-site installation and commissioning.
A multilingual online support team accommodates global time zones, ensuring rapid responses to inquiries regarding product selection, bulk order tracking, and after-sales issue reporting from overseas wholesalers and small-to-medium-sized underfloor heating contractors, ensuring seamless cross-border communication.
For large-scale commercial or residential bulk procurement projects, we offer customized thread specifications based on manifold pipe diameters and cabinet layout requirements. We also provide a stable, long-term supply of replaceable wear parts, such as OEM EPDM gaskets and adjustable valve cores.
Floor Heating Pipe Integrated Flow Control Valve: Features mechanical manual dial adjustment without electronic actuators. It is designed specifically for underfloor heating systems in residential homes, small-to-medium shops, and small office buildings that lack Building Automation Systems (BAS); it is optimized for basic hydraulic balancing at a lower cost. Program-controlled flow valve: Equipped with a stepper-motor electronic control module; compatible with 0-10V and Modbus building automation signals; suitable for commercial HVAC projects featuring BMS intelligent management platforms (e.g., large shopping malls, high-rise office buildings, community central heating); supports remote, program-based flow control.
Integrated Flow Control Valve: Relies on manual rotation of the valve core; fine-tuning of flow for a single branch is achieved via an intuitive scale; requires no associated electrical control wiring or automation host; on-site commissioning does not require specialized electrical control technicians. Program-controlled flow valve: Supports both local manual adjustment and remote/scheduled automatic flow control via the building system; requires the installation of electrical control signal lines and integration with an automation host; commissioning requires expertise in building automation programming.
Integrated Flow Control Valve: Targeted at small-to-medium-sized underfloor heating projects (residential renovations, small shops, low-rise offices); features a streamlined structure without electrical control components; lower unit procurement cost; suitable for large-volume, cost-effective HVAC installations. Program-controlled flow valve: Suitable for large-scale HVAC projects such as commercial complexes and high-rise central heating systems; the inclusion of electronic control modules and precision valve cores increases the unit cost; suitable for high-end commercial projects with budgets for smart building upgrades.
Integrated Flow Control Valve: Contains no electrical components; only the valve core and gaskets are wear parts; requires few types of spare parts and allows for simple replacement; maintenance does not require an electrician—HVAC installers can handle part replacement; low maintenance costs. Program-controlled flow valve: Wear parts include the electronic actuator, communication module, valve core, and gaskets; electrical component failures require troubleshooting by specialized technicians; involves a wider range of spare parts; higher overall long-term maintenance costs.
Integrated Flow Control Valve: Requires only threaded pipe connections; no space needed for electrical wiring; can be installed directly in compact underfloor heating cabinets or concealed ceiling piping; no additional wiring installation steps required. Program-controlled flow valve: In addition to piping installation, space must be reserved for laying electrical control wiring; the mechanical room and equipment pipe shafts require supporting cable trays, which increases on-site construction steps and labor hours.
A: Old-fashioned plastic plugs and simple pipe fittings lack flow regulation capabilities and cannot balance water flow across underfloor heating branches, easily leading to uneven heating or cooling throughout the house. Standard flow fittings without scales lack a reference for adjustment, relying entirely on the installer's experience; this makes commissioning difficult and prone to subsequent flow drift. Floor Heating Pipe Integrated Flow Control Valve features a valve core with precise markings, allowing for intuitive manual adjustment of flow for each circuit. Its integrated structure reduces the number of leak-prone connection points, achieves cost-effective hydraulic balancing, and is suitable for various small-to-medium-sized underfloor heating projects.
A: It uses EPDM seals specifically designed for underfloor heating. These have passed factory durability tests involving over a thousand cycles of alternating hot and cold temperatures (above 60°C). They will not harden, shrink, or crack when immersed in hot water year-round. Dual-point sealing—at both the valve core and the threads—effectively prevents slow leakage at the connection points over the long term.
A: It utilizes standard thread specifications common to both domestic and international HVAC markets, making it compatible with over 95% of mainstream underfloor heating manifold brands. It allows for direct replacement in various new and existing systems, including residential homes, self-built houses, shops, and small office buildings. Custom thread specifications are available for large-scale projects using non-standard manifolds.
A: The valve body features a compact, streamlined design suitable for installation at the end of a manifold or on a branch line; only the graduated adjustment handle protrudes, allowing the main valve body to be fully encased in underfloor heating insulation. Whether installed in a compact residential heating cabinet or a narrow utility shaft with limited clearance, the flow rate can be easily adjusted by manually turning the handle—unobstructed by sheet metal, piping, or insulation—enabling seamless, one-person operation.
A: Absolutely. The valve's thread specifications are compatible with the fittings used on older manifolds. Retrofitting simply requires removing the existing, obsolete components and installing this integrated flow valve directly; there is no need to cut or modify the embedded main supply lines, which significantly reduces the complexity of the retrofit, as well as material and labor costs.
A: Universal flow-control fittings are general-purpose components that require additional adapters to connect to manifolds—they take up more space in the manifold cabinet and add potential leak points. This valve is specifically designed for underfloor heating manifold end installation—it combines connection and flow regulation in a single integrated body, requires no additional adapters, and fits compactly into tight manifold cabinets. It is the optimized choice for residential and small-to-medium commercial underfloor heating projects where cabinet space is limited.
