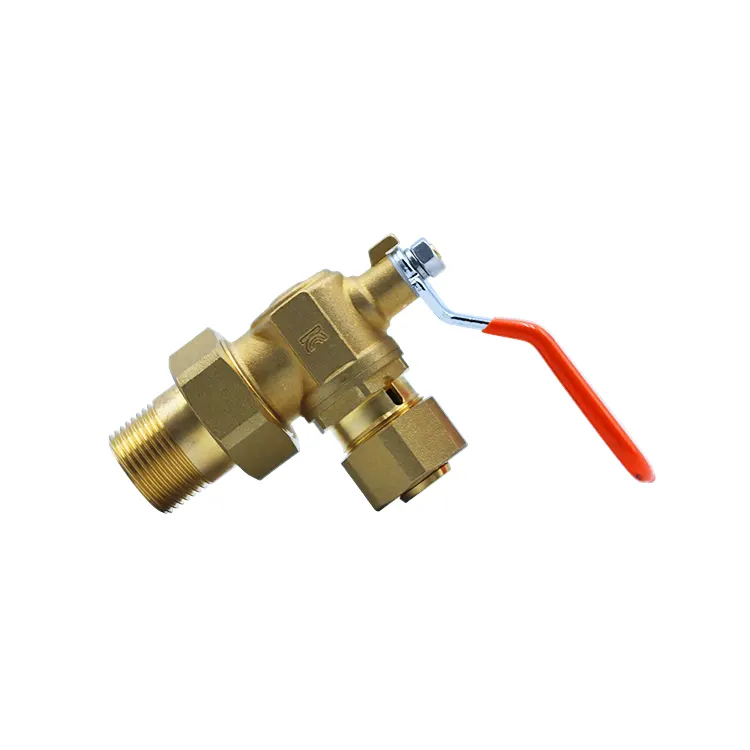

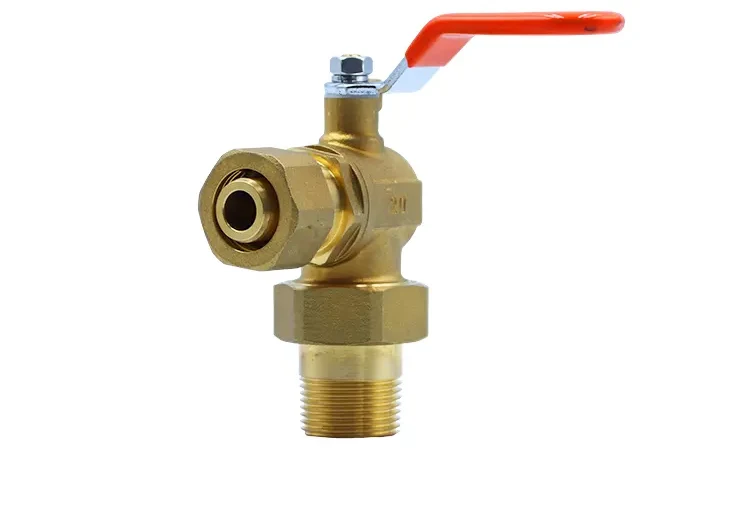

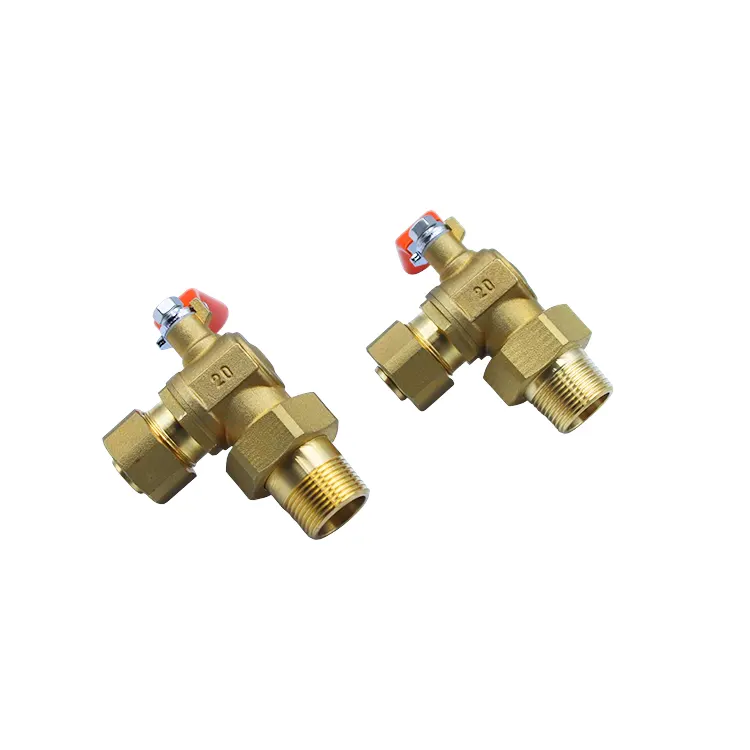

Union Brass Pipeline Control Valve

The Union Brass Pipeline Control Valve specifically addresses common pain points in valve installation and maintenance. It utilizes a thickened, one-piece forged HPb59 brass body with a nickel-plated finish that resists corrosion and limescale buildup. The integrated rotating union nut allows for easy alignment and leveling during installation, preventing thread damage caused by misalignment. For future maintenance, the valve body can be removed and replaced independently without the need to cut the pipeline.

Its precision internal core, combined with an EPDM temperature-resistant seal, ensures stable pressure handling and smooth operation, allowing for precise control of flow and shut-off. The compact design fits into tight pipe shafts, while various thread specifications ensure compatibility with mainstream heating piping materials, making it ideal for residential dual-supply systems, retail spaces, and office building HVAC systems.

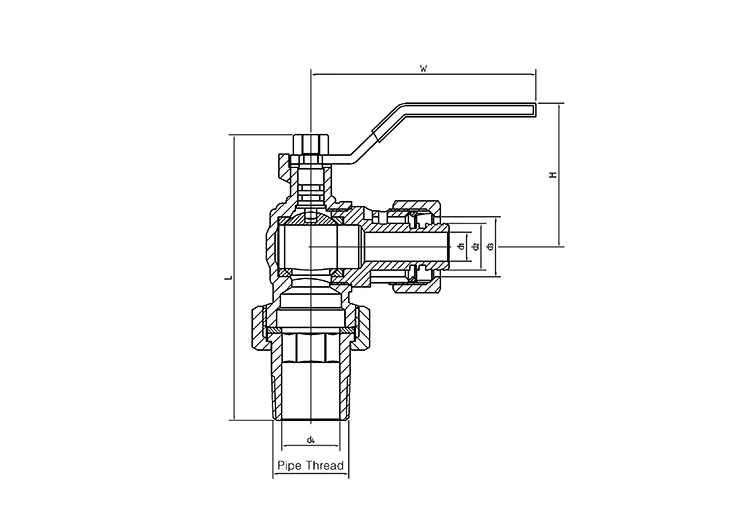

Technical parameters

What are the key features of the valve body material?

1. Thickened Forged Brass Body

The Union Brass Pipeline Control Valve is forged from high-quality HPb59 brass. The body features uniform wall thickness and a dense structure free from sand holes or air pockets. It offers excellent pressure resistance, is suitable for HVAC hot and cold medium circulation, and resists deformation or cracking.

2. Nickel-Plating for Corrosion and Limescale Resistance

The valve body undergoes precision nickel-plating to isolate it from moisture and mineral corrosion. This effectively prevents limescale accumulation and oxidation/rust, maintaining structural stability during long-term operation involving alternating hot and cold cycles.

3. Controlled Raw Material Quality

Brass raw materials undergo batch-by-batch spectral analysis. The material is compliant and free from harmful leaching, meeting safety standards for residential and commercial HVAC piping materials and ensuring suitability for long-term, continuous operation.

Advantages of the Union Structure

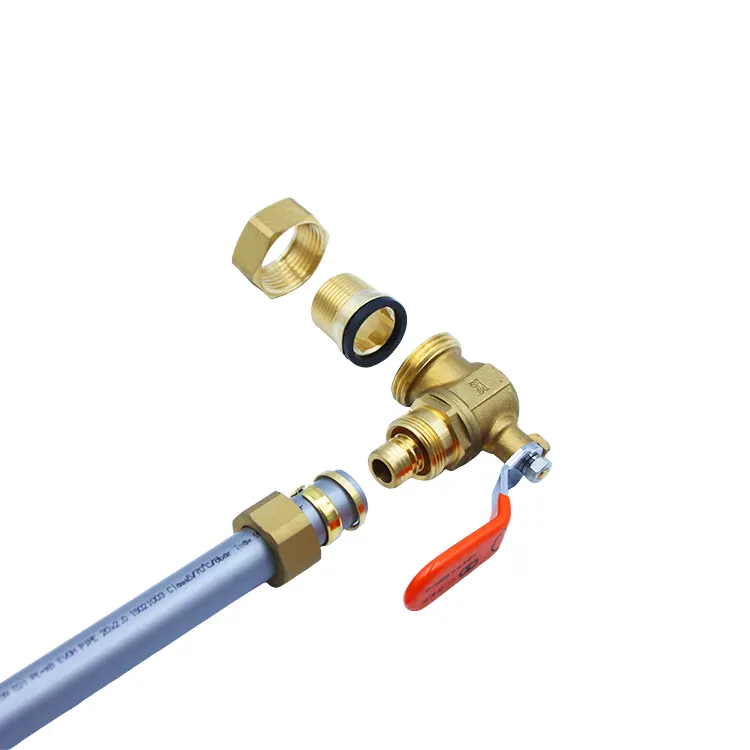

1. Flexible Alignment & Thread Protection

Features a rotatable union nut that allows for flexible thread angle adjustment during installation, accommodating piping misalignment and preventing issues like stripped or damaged threads caused by forced installation.

2. Rapid Maintenance without Pipe Cutting

Valve inspection or replacement requires no cutting or dismantling of existing piping; simply loosening the union nut allows the valve body to be removed independently, significantly shortening repair time and preserving the original piping layout.

3. Suitable for Tight Spaces

The compact, integrated design eliminates the need for extensive clearance, allowing for easy installation in underfloor heating cabinets, ceiling pipe shafts, and equipment areas with narrow pipe spacing—ideal for various space-constrained scenarios.

Sealing and Control Configuration

1. Precision Sealing Valve Core

Equipped with a high-precision ground valve core ensuring a tight fit and effective pressure resistance, preventing common issues such as operational leaks or pressure loss due to incomplete shut-off.

2. Temperature-Resistant EPDM Gaskets

Uses HVAC-specific sealing components that withstand alternating hot and cold cycles; the material resists hardening and deformation under long-term high-pressure water flow, ensuring sustained sealing performance.

3. Smooth Operation

The valve core features balanced damping for smooth, snag-free operation, allowing for precise control of flow and shut-off with minimal effort during daily adjustments.

Piping Compatibility

1. Multi-Material Compatibility

Features standard universal thread specifications compatible with mainstream heating pipes such as PEX and aluminum-plastic composite pipes, suitable for underfloor heating and central air conditioning fluid systems.

2. Comprehensive Size Range

Offers a wide selection of thread sizes to match piping diameters for various HVAC projects, ranging from small residential units to large commercial spaces and office buildings.

3. Integrated Structure Minimizes Leaks

The streamlined, integrated design reduces the number of adapters and connection points, minimizing leakage risks at the source and enhancing the overall airtightness of the piping system.

Comprehensive Quality Control System

1. Raw Material Component Testing

Brass billets undergo batch-by-batch spectral verification; union nuts, valve cores, and seals undergo high/low-temperature immersion, high-pressure resistance, and 10,000-cycle fatigue testing to ensure high-quality components from the source.

2. Comprehensive Finished Product Inspection

Every Union Brass Pipeline Control Valve is individually tested for union engagement precision, water pressure/leak-proof performance, and handle operation feel, eliminating issues such as stripped threads, leakage, or imperfect closure.

3. End-to-End Traceability

Valve bodies are laser-marked with unique batch codes, ensuring traceability across all production stages; material test reports and factory certificates are available to meet acceptance standards for various HVAC projects.

Application Scenarios

1. Residential Dual-Supply Systems

Compatible with residential underfloor heating and central air-conditioning dual-supply water circuits; easy to install and maintain, and suitable for compact residential underfloor heating manifold cabinets.

2. Commercial HVAC Systems

Highly adaptable to the frequent heating/cooling switching required in retail stores; ensures stable water control and leak prevention; standardized for batch installation and maintenance in commercial HVAC projects.

3. Office Building Centralized Piping

Suitable for centralized heating/cooling piping in multi-story offices; standardized specifications facilitate batch installation; universal parts and easy maintenance reduce overall project costs.

4. Retrofitting of Aging Pipelines

Can directly replace old fixed-thread valves without altering main pipelines or cutting pipes, enabling cost-effective valve upgrades for existing systems.

After-Sales Support

1. 12-Month Manufacturer Warranty

Includes a 12-month manufacturer warranty covering inherent quality issues such as valve body cracking, seal leakage, valve core sticking, or union engagement failure.

2. Professional Installation & Maintenance Guidance

Technical teams provide hands-on guidance for pipeline alignment, union adjustment, and troubleshooting, preventing leakage or stripped threads caused by improper installation.

3. Multilingual Cross-Border Service

Multilingual customer service handles global procurement orders, providing timely responses to overseas product inquiries, order tracking, and after-sales maintenance needs to support cross-border project collaborations.

4. Customization and Spare Parts Supply

We support the customization of non-standard specifications for large-volume projects and maintain a year-round inventory of genuine replacement parts—such as union gaskets and control valve cores—to ensure long-term pipeline operation and maintenance.

FAQ

Q1: What is the key advantage of the union structure compared to standard fixed-thread valves?

A: Standard fixed-thread valves are difficult to align during installation and prone to thread damage; replacing them later requires cutting the pipeline, which disrupts the original layout. The Union Brass Pipeline Control Valve features a rotatable union nut for free alignment and zero-deviation installation. It allows for rapid disassembly and reassembly without cutting pipes, significantly reducing construction and maintenance costs.

Q2: Is the union connection prone to leakage under long-term pressure?

A: The union's mating precision has been rigorously verified. Paired with temperature-resistant gaskets, it ensures a tight, uniform fit. It remains leak-free and drip-free under long-term thermal cycling and standard pipeline operating pressures, offering exceptional sealing stability.

Q3: Is it suitable for central air conditioning systems with alternating heating and cooling cycles?

A: Yes, it is fully compatible. The valve body features an anti-corrosion nickel plating, and the seals withstand both high and low temperatures. It reliably handles the alternating cooling and heating operations of central air conditioning systems, remaining stable and failure-resistant despite temperature and pressure fluctuations.

Q4: Can it be installed and serviced in tight spaces like suspended ceilings or pipe shafts?

A: Yes. The valve body is compact, requiring minimal operating clearance. The quick-release union structure eliminates the need for extra space for cutting or maneuvering, allowing for easy installation and future maintenance in tight, concealed piping areas.
