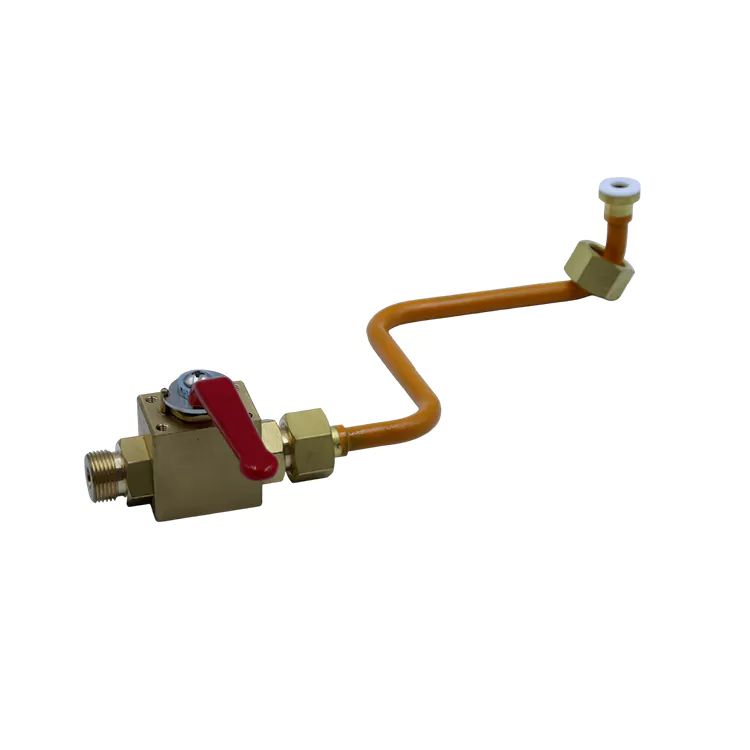

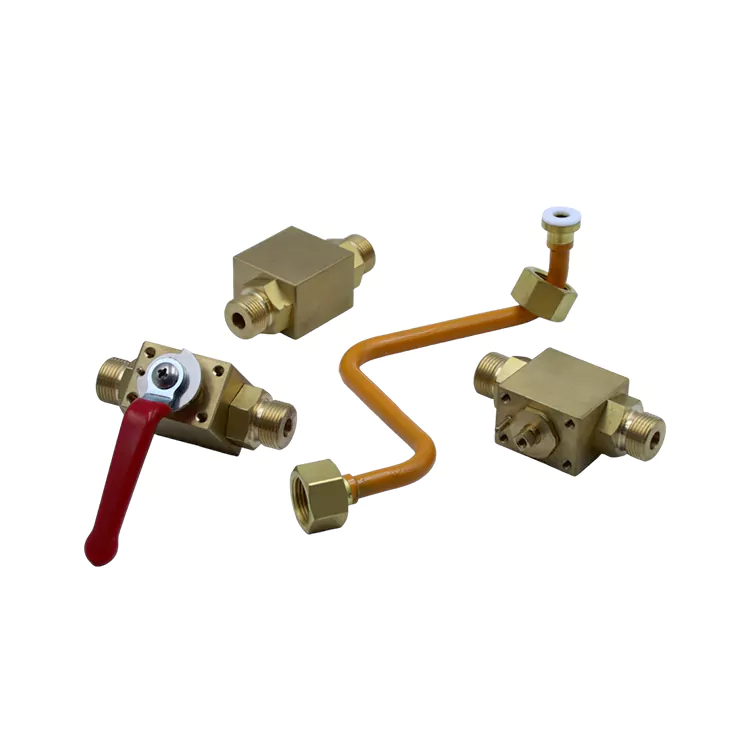

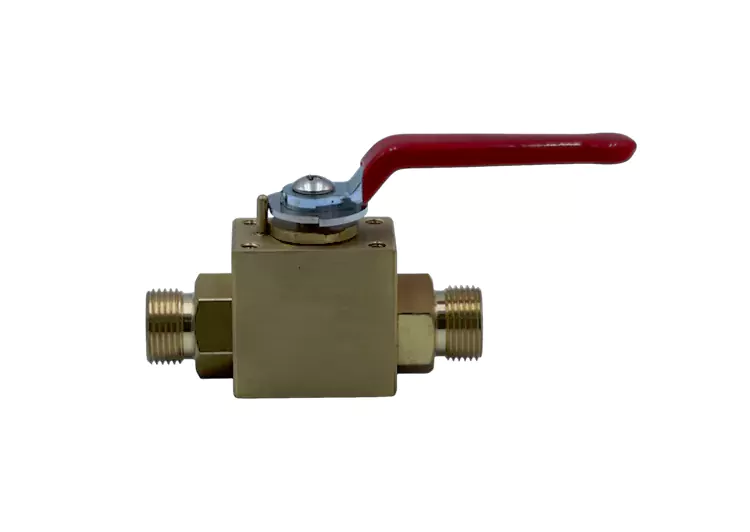

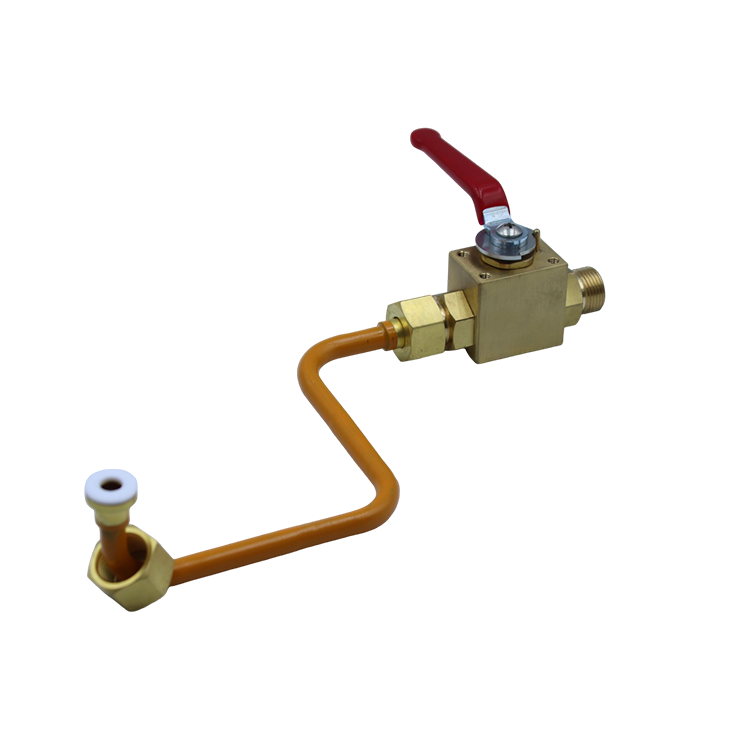

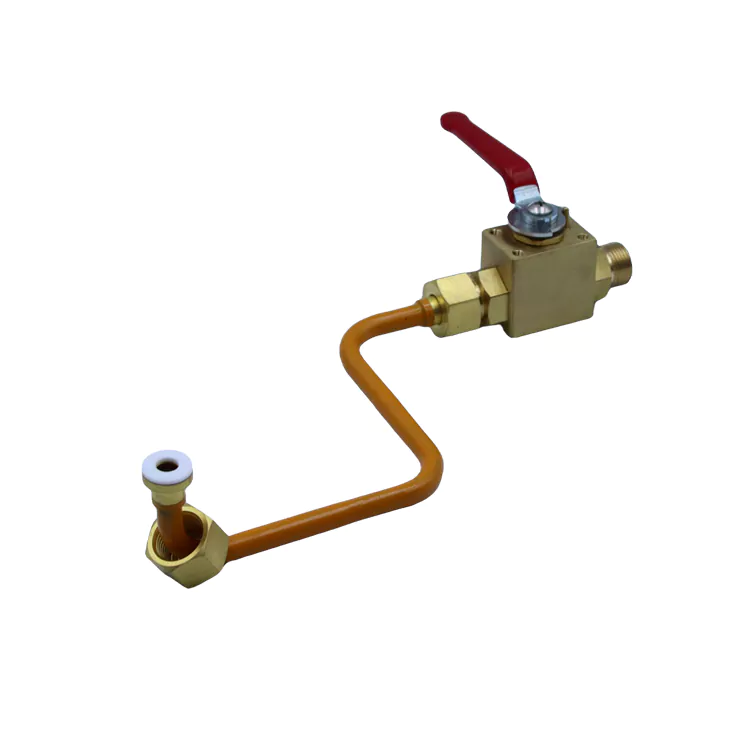

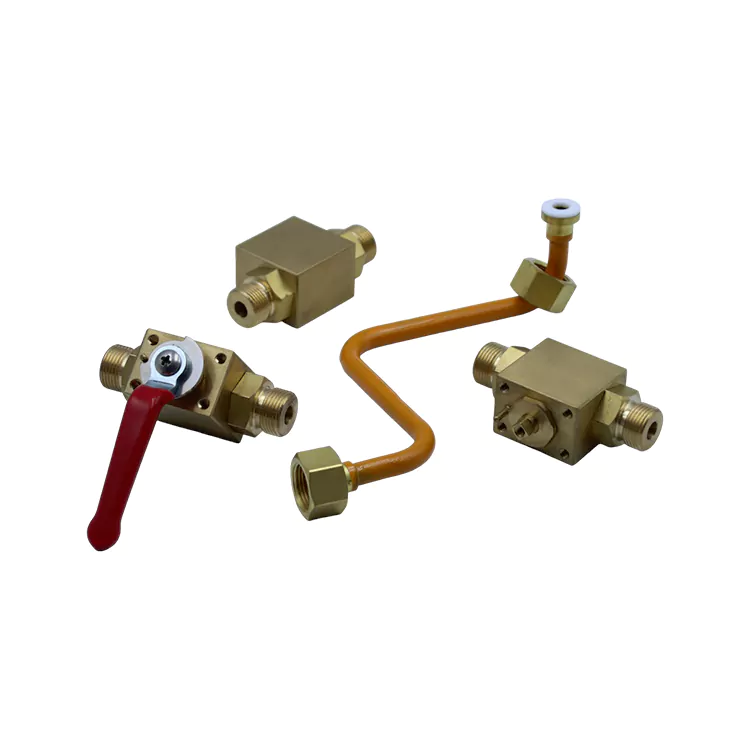

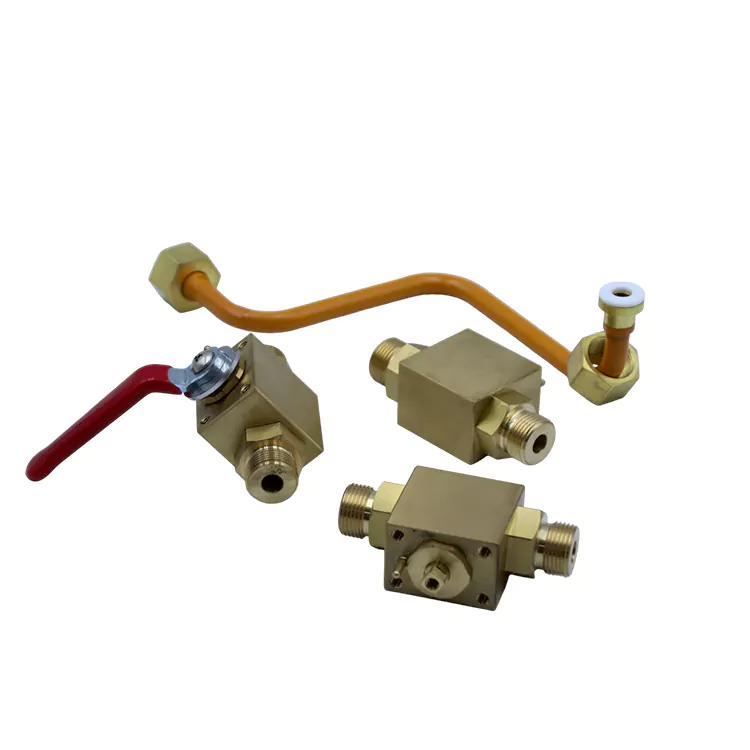

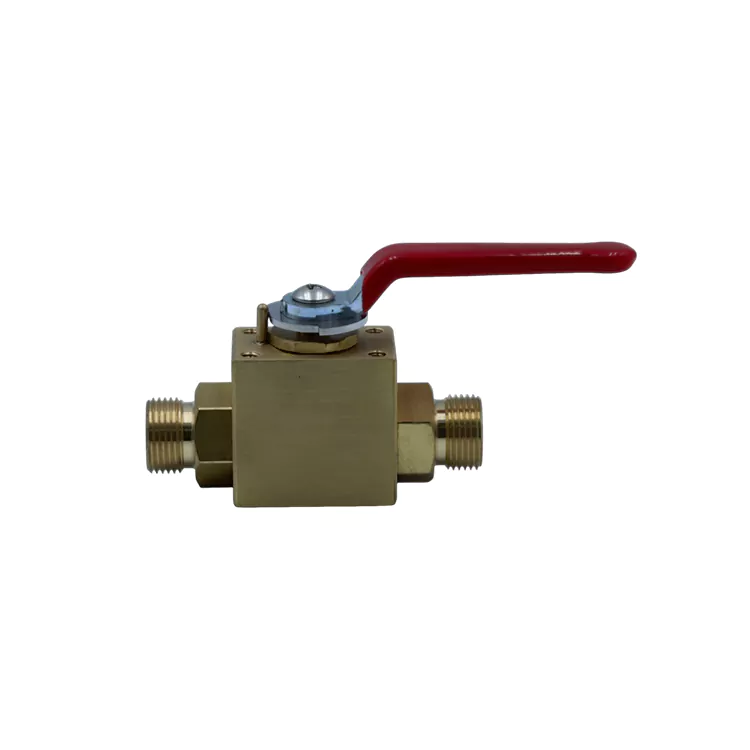

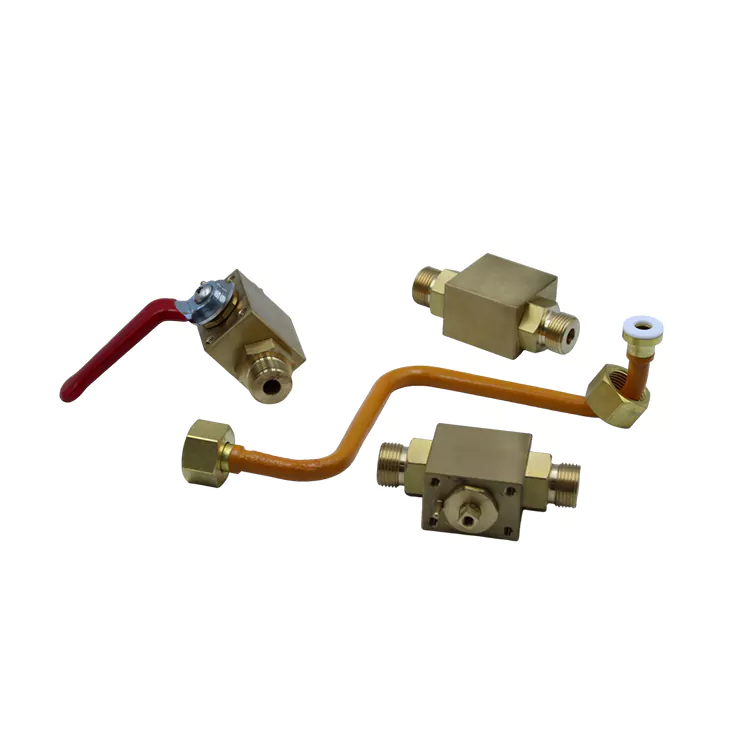

High Pressure Brass Ball Valve Compatible with Red Copper Tubing

Our High Pressure Brass Ball Valve Compatible with Red Copper Tubing can specifically address the installation and operation challenges of high-pressure copper piping systems. It features a thickened, lead-free forged brass integral valve body, enhancing the wall thickness to accommodate high-pressure fluid conditions. The double socket locking structure at both ends, combined with stainless steel clamps and fluorosilicone seals, enables the copper pipe to be fixed and installed simply by hand without the need for welding or threading.

In addition, it incorporates a mirror-polished chrome full-diameter ball core, PTFE composite valve seat, and a double-layer anti-blowout valve stem structure. This design achieves low-pressure loss water flow and zero leakage in both directions at the bubble level, and can withstand long-term cold medium corrosion and high-temperature alternating conditions. It is a specialized valve for lightweight installation in industrial refrigeration and high-pressure water supply pipelines, as well as for long-term stable pressure and leak prevention.

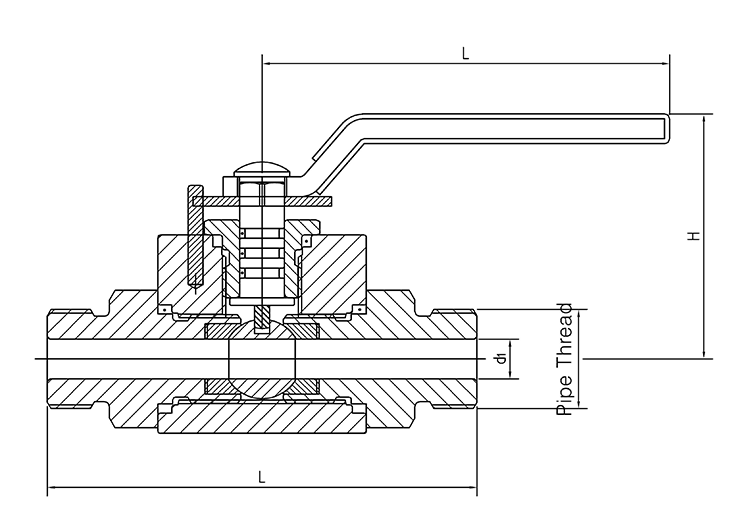

Technical Parameters

Thickened forged brass valve body

1. Integrated forged thickened wall thickness: This is forged from lead-free brass, distinct from ordinary die-cast valve bodies. The valve wall has higher density and uniform thickness, which can stably withstand continuous high pressure and instantaneous pressure shock in industrial water supply and refrigeration systems. It is less likely to cause valve deformation or cracking problems.

2. Corrosion-resistant and scale-resistant material: The high-quality brass base material has excellent resistance to scale formation and medium corrosion. It can be compatible with various fluids such as refrigerant and industrial clean water. Long-term operation will not cause valve rusting or inner wall scaling and constricting problems, ensuring stable pipeline flow.

3. Lead-free and environmentally friendly material: The raw materials are screened through spectral detection and do not have heavy metal emissions. It complies with the specifications for commercial engineering materials in HVAC and refrigeration, and can be widely used in commercial central air conditioning and industrial water supply compliant pipeline systems.

Advantages of the solderless double sleeve structure

1. No need for welding expansion: The unique double sleeve locking design eliminates the need for hot welding and copper tube expansion processing. By simply tightening the nut, the copper tube can be fixed and sealed, avoiding the risks of welding burns to the copper tube, false welding leakage, and fire hazards. This significantly simplifies the construction process.

2. Uniform locking of double sleeves: Combined with the precise stainless steel double sleeve clamp structure, the clamping force is uniform, allowing for a close fit with the thin-walled copper tube wall. During high-pressure water flow and fluctuations in refrigerant pressure, there will be no pipe slippage or interface loosening, making it suitable for dynamic high-pressure pipeline conditions.

3. Compatible with multiple specifications of copper tubes: Standardized sleeve specifications can match mainstream thin-walled and conventional wall thickness copper tubes on the market. Without the need to replace accessories, it can be adapted to different pipe diameters and pipelines, reducing the types of engineering inventory and improving on-site installation compatibility efficiency.

Special sealing accessories

1. Exclusive fluororubber sealing, resistant to refrigerant and aging under high and low temperatures: Equipped with industrial-grade fluororubber sealing rings, different from ordinary rubber materials, it can withstand the corrosion of refrigerant and is suitable for alternating high and low temperature working conditions. It does not crack at low temperatures or soften at high temperatures, maintaining long-term sealing performance.

2. Thickened PTFE valve seat, achieving bidirectional zero-leakage sealing: The ball seat is made of thickened polytetrafluoroethylene material, closely fitting the chrome-plated ball core. The sealing gap is extremely small. Under the impact of forward and reverse fluid pressure, it can achieve bubble-level airtightness and prevention of leakage, eliminating the problem of high-pressure micro-leakage.

3. Multiple sealing combinations, eliminating the risk of medium penetration: The fluororubber sleeve sealing, valve seat PTFE sealing, and valve stem double-layer sealing are combined to form a triple protection system, effectively blocking the penetration of refrigerant and high-pressure water bodies, suitable for 24-hour uninterrupted operation of refrigeration units.

How to enhance the operational stability of high-pressure pipelines?

1. Full-diameter mirror-faced ball core, low-resistance efficient water and cold fluid transportation: The internal cavity is equipped with a mirror-faced chrome-plated full-diameter ball core, with no narrowing or throttling dead zones. The flow resistance is extremely low, preventing the loss of cooling capacity in the refrigeration pipeline and the attenuation of high-pressure water supply flow. This ensures the energy efficiency of the system operation.

2. Double-layer sealing anti-blowout valve stem, eliminating high-pressure safety hazards: The valve stem adopts a double-layer sealing + anti-blowout limit structure. It will not pop out or get stuck under long-term high-pressure static conditions or frequent pressure fluctuations. It is stable and suitable for complex pressure conditions of industrial high-pressure pipelines.

3. 90° long handle control, smooth opening and closing with less effort: The added long mechanical handle design allows for full opening and closing in 90°. The opening and closing is smooth without any jamming. Even under high-pressure and pressurized conditions, it can easily complete the control of the pipeline connection and disconnection, suitable for daily operation and maintenance of equipment in the machine room.

High-pressure condition-specific quality inspection system

1. Spectroscopic analysis of base materials, strictly controlling the standards for high-pressure materials: All forged brass billets are subjected to batch-by-batch spectral composition testing, and the hardness, pressure resistance, and corrosion resistance of the materials are strictly verified to meet the requirements for dedicated materials for high-pressure water supply and refrigeration media.

2. Special aging and pressure resistance tests for sealing components: Fluorine rubber sealing rings and stainless steel clamps conduct separate high-pressure durability and anti-aging tests to pre-screen out inferior components that may deform under high pressure or corrode the medium, controlling the sealing stability from the component end.

3. 100% full-item high-pressure performance testing of finished products: All High Pressure Brass Ball Valve Compatible with Red Copper Tubing are completed for high-pressure water pressure testing, airtight leak detection testing, and 100,000 times reciprocating opening and closing durability testing per unit, comprehensively verifying the pressure resistance limit, sealing reliability, and opening and closing stability of the valve body.

4. Special structural accuracy verification, compatible with copper tubes: Focus on detecting the clamping fit of copper tube sleeves, the uniformity of valve body wall thickness, and the accuracy of thread fit, specifically avoiding core faults such as pipe material slippage, thread leakage, and valve body pressure failure under high-pressure conditions.

5. Full batch traceability + complete engineering qualifications: Each valve is equipped with an independent batch code, and the entire production chain is traceable. It can provide material test reports, high-pressure pressure resistance reports, CE certification, fully meeting the requirements for completion acceptance and cross-border customs clearance in HVAC and refrigeration engineering.

Service Advantages

1. Special technical guidance for copper pipe assembly: Professional technicians provide comprehensive technical guidance throughout the process of no-welded sleeve assembly, copper pipe alignment and locking, high-pressure pipeline pressure testing, and refrigerant pipeline leakage detection, solving installation and commissioning problems of high-pressure pipelines.

2. Multilingual cross-border customer service rapid response: Equipped with a multilingual service team, providing 24/7 connection with global purchasing customers, quickly responding to order inquiries, equipment compatibility, and after-sales repair requests, suitable for large-scale overseas engineering cooperation.

3. Customized industrial project solution packages: For large refrigeration units and centralized high-pressure water supply projects, custom-made exclusive solution packages can be provided based on pipeline pressure parameters and pipe diameter specifications, meeting the needs of non-standard engineering conditions.

4. Long-term supply of original factory parts + 12-month warranty: Long-term and stable supply of original factory stainless steel clamps, fluorocarbon sealing pads, PTFE valve seats, etc., all products enjoy 12-month original factory warranty, covering material and process original quality issues.

Which high-pressure refrigeration and industrial pipeline scenarios are compatible with it?

1. Commercial central air conditioning refrigerant circulation pipeline: Suitable for high and low pressure refrigerant pipelines of large central air conditioning units. It is resistant to refrigerant corrosion, has strong adaptability to both high and low temperatures, and can be installed without welding, enabling quick assembly of the pipeline for the air conditioning unit. It provides long-term stable pressure and leak-proof performance.

2. Special pipeline for industrial refrigeration units: Suitable for high-pressure circulation pipelines of industrial freezing and refrigeration equipment. It can withstand continuous high pressure and low-temperature conditions. The double socket structure prevents interface leakage caused by equipment vibration.

3. Industrial high-pressure water supply system pipeline: Suitable for high-pressure water supply and booster water supply copper pipelines in factories. The thickened valve body is resistant to pressure and durable. The full flow structure ensures stable high-pressure water supply flow and is compatible with industrial continuous operation conditions.

Q&A

Q1: Compared with traditional welded ball valves, what are the core advantages of the solderless double-bushing structure in high-pressure applications?

A: Traditional welded ball valves require hot welding, which can cause burns to the copper tubes and lead to false welding leaks. The later rework is also very difficult. This product does not require welding expansion, and the double bushings evenly lock the copper tubes. The construction is safe and efficient, and it also avoids the problem of pipe material slipping off under high-pressure vibrations, significantly reducing the installation and operation costs of high-pressure pipelines.

Q2: Does the fluorine rubber sealing ring fit all types of refrigerant media? Will it be corroded and aged?

A: The specially customized fluorine rubber sealing ring has excellent resistance to refrigerant corrosion and can be adapted to mainstream central air conditioning and industrial refrigerant media. It can also withstand high and low temperature alternating changes and will not harden, crack, or leak. It is suitable for the continuous operation of refrigeration systems throughout the year.

Q3: What are the safety protection functions of the double-layer anti-blowout valve stem for high-pressure pipelines?

A: High-pressure pipeline startups and stops will generate instantaneous high-pressure impacts. Ordinary valve stems are prone to being pushed up and ejected, causing medium leakage. This product's double-layer sealed anti-blowout valve stem with a limit structure can withstand continuous high-pressure impacts, eliminating the risks of valve stem jamming, ejection, and leakage, and enhancing the safety of industrial pipeline operation.

Q4: What practical benefits does the full-diameter design bring to refrigeration and high-pressure water supply systems?

A: The full-diameter non-throttling structure has almost no fluid resistance and will not reduce the pressure and flow of the pipeline, ensuring the efficiency of central air conditioning cooling and the stability of industrial high-pressure water supply. It avoids the problem of excessive pressure drop in the pipeline, which leads to increased equipment energy consumption and reduced operating efficiency.

Q5: Can thin-walled red copper tubes be compatible with this double-bushing ball valve?

A: Completely compatible. The double-bushing structure of the High Pressure Brass Ball Valve Compatible with Red Copper Tubing has been precisely calibrated, with uniform clamping force, and can closely fit the thin-walled copper tube wall without squeezing and deforming the pipe material. Under high-pressure conditions, it adheres firmly and stably without the risk of slippage or leakage, and is suitable for all types of conventional and thin-walled copper pipelines.

Q6: What are the differences between the finished high-pressure testing and the ordinary water pressure test?

A: This product adopts industrial-grade high-pressure specialized testing standards, simulating the real high-pressure conditions of refrigeration and industrial water supply. It can accurately detect hidden problems such as micro-leaks, loose bushing adhesion, and insufficient valve body pressure-bearing capacity under high-pressure conditions. The testing standards are much higher than those of ordinary civilian valves and are suitable for industrial harsh conditions.
