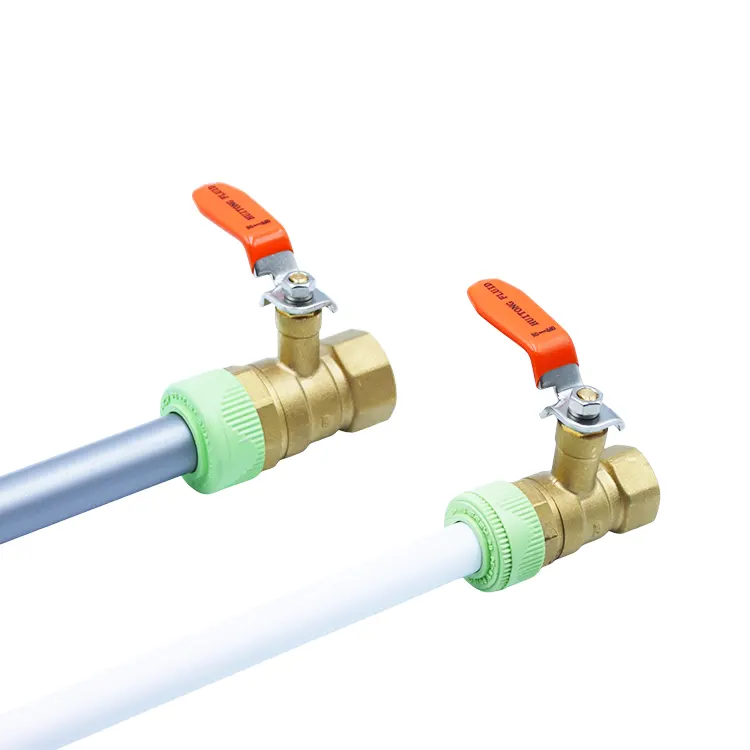

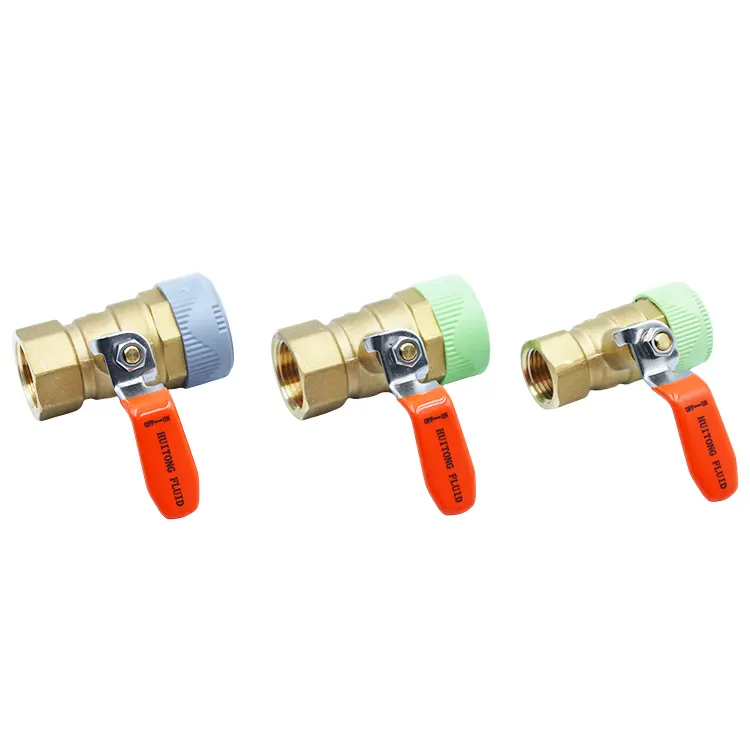

High Temp FT Brass Ball Valve with Extended Stem

The High Temp FT Brass Ball Valve with Extended Stem utilizes an extended, heat-insulating stem structure to solve the industry pain point of hot handles during high-temperature pipeline operation. Equipped with high-temperature resistant graphite-filled PTFE seals, it ensures stable, long-term transport of high-temperature media. The double female threaded ends are compatible with various thermal piping fittings, and the compact valve body fits pipelines wrapped in thick insulation. Supported by specialized testing protocols for high-temperature conditions, the valve offers high durability and requires minimal maintenance, making it widely used in underfloor heating and industrial high-temperature circulation pipeline projects.

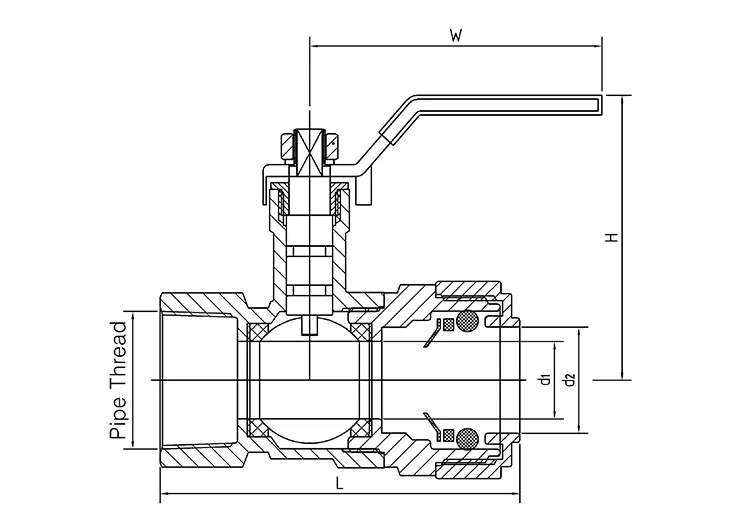

Technical parameters

Dedicated Safety Design

1.  Extended Insulated Stem: Features an extended, isolated stem structure that blocks heat transfer from the valve body to the handle. This prevents workers from being burned by hot components during operation, significantly enhancing safety for on-site handling of high-temperature pipelines.

2.  Anti-Blowout Stem Design: The stem incorporates a reinforced anti-blowout structure. It remains securely locked even under fluctuating pressure from steam or high-temperature water, eliminating safety hazards such as media spraying or stem ejection.

3.  Simple 90° Operation: Designed for easy 90-degree rotation, the valve allows for full opening or closing with a simple turn of the handle. The operation is straightforward, enabling rapid control of pipeline flow even in complex, high-temperature environments.

Configuration Details

1.  High-Temp DZR Brass Construction: The High Temp FT Brass Ball Valve with Extended Stem body is forged from a single piece of high-temperature resistant DZR (dezincification-resistant) brass. Its heat resistance far exceeds that of standard brass valves, ensuring no rapid oxidation or deformation during long-term transport of high-temperature media.

2.  High-Performance Seals: Sealing components are made of graphite-filled PTFE. Unlike standard EPDM rubber seals, these materials resist hardening, aging, and leakage during continuous contact with high-temperature fluids.

3.  Full-Bore Design: The internal full-bore structure minimizes flow resistance, ensuring stable, high-volume transport of hot water and steam without pipeline flow attenuation.

Advantages of the Dual Female Thread Design

1. Standardized female threads on both ends allow for direct compatibility with mainstream heating and steam pipeline fittings; this eliminates the need for extra adapters and reduces potential leakage points.

2. The compact valve body allows for installation even when pipes are wrapped in thick insulation, making it ideal for the tight spaces found in mechanical rooms and underfloor heating manifolds.

3. Suitable for a wide range of media and applications—including underfloor heating circulation, industrial high-temperature hot water, low-pressure steam, and high-temperature fluid circulation—High Temp FT Brass Ball Valve with Extended Stem is compatible with both residential heating and light industrial piping systems.

Manufacturer Warranty and Support

1. Comprehensive Documentation: Each shipment comes with complete ISO and CE test certificates and material analysis reports, meeting requirements for overseas thermal engineering project registration and customs clearance.

2. Standard 12-Month Manufacturer Warranty: The warranty covers all manufacturing defects; free after-sales support is provided for sealing or valve body quality issues arising during normal high-temperature operation.

3. Specialized Technical Services: Our technical team specializes in high-temperature thermal piping and offers guidance on extended-stem valve insulation assembly, leak troubleshooting, and steam system component selection, ensuring rapid responses to online inquiries from global buyers.

Routine Maintenance Recommendations

1. Regularly inspect the seal at the valve stem connection. If slight leakage occurs after prolonged high-temperature use, the high-temperature graphite/PTFE seal kit can be replaced individually without needing to replace the entire valve body.

2. The operating handle rotates approximately 90°; do not force it beyond this range, as excessive force can deform the extended stem, damage internal seals, and shorten the product's lifespan.

3. In steam applications, avoid subjecting the valve body to sudden thermal shocks caused by rapid temperature changes. Gradually adjust pressure during startup and shutdown to minimize wear on the valve body and seals caused by thermal cycling.

4. Before long-term storage, drain any residual high-temperature media from the valve body and clean off surface dirt. Store the valve in a dry, well-ventilated area to prevent corrosion of the threads caused by long-term accumulation of high-temperature scale.

FAQ

Q1: What are the advantages of the extended-stem model compared to standard short-stem ball valves?

A: With standard short-stem ball valves, high heat from the valve body transfers directly to the handle, posing a burn risk to operators. The High Temp FT Brass Ball Valve with Extended Stem creates a thermal barrier that structurally eliminates this risk; the valve body can be embedded within the insulation layer while the handle remains exposed for easy operation, making it the ideal choice for high-temperature thermal piping.

Q2: How do graphite-filled PTFE seals compare to standard rubber seals in high-temperature environments?

A: Standard rubber seals harden and crack rapidly when exposed to temperatures above 100°C for extended periods, leading to leaks. Graphite-filled PTFE offers superior heat resistance, making it suitable for continuous operation with high-temperature hot water and low-pressure steam; it significantly slows seal aging and reduces the frequency of pipeline maintenance.

Q3: Which thermal piping accessories are compatible with this double-female-thread valve?

A: Featuring standard female pipe threads at both ends, it connects directly to mainstream underfloor heating manifolds, steam valve fittings, and high-temperature water pipe components without requiring additional adapters, thereby minimizing potential leak points.

Q4: How are seal leaks handled in high-temperature applications?

A: For seal or valve body issues not caused by improper handling, our technical team provides targeted assembly adjustment solutions and supplies replacement sealing parts to guide repairs.

Q5: Can the valve be used for long-term service in low-pressure steam circulation lines?

A: It is fully compatible. The high-temperature resistant brass body and specialized high-temperature seals have undergone simulated steam aging tests, ensuring stable long-term operation in low-pressure steam lines with minimal flow loss and extended maintenance intervals.

Q6: Can the High Temp FT Brass Ball Valve with Extended Stem be installed on pipes with thick insulation layers?

A: Yes. The valve body is compact, with only the extended stem protruding beyond the insulation layer. This allows the insulation material to fully wrap the valve body without gaps caused by valve protrusions, making it suitable for installations in mechanical rooms and concealed high-temperature piping in ceiling spaces.
