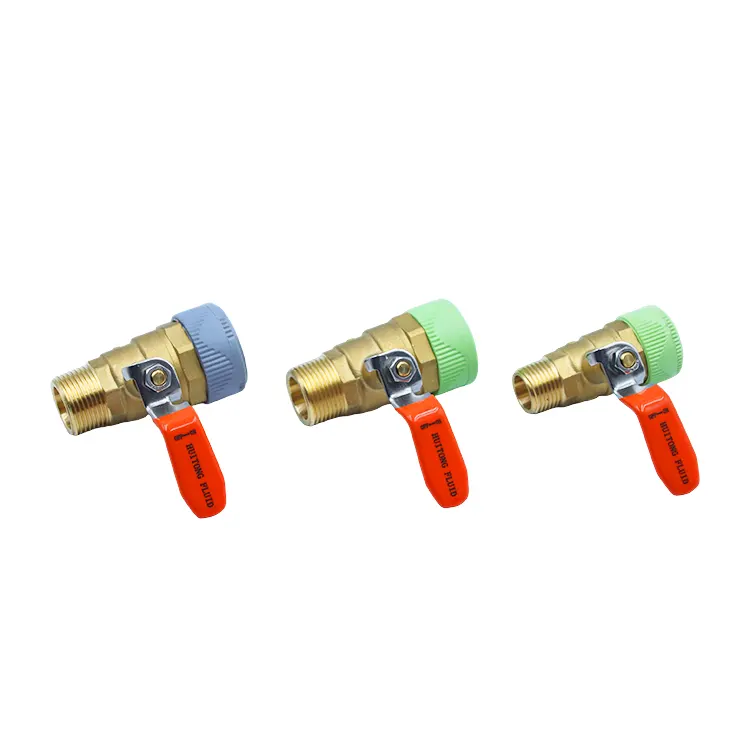

Extended Stem Male Thread Quick Connect Brass Ball Valve

This quick-connect brass ball valve is a composite control valve developed by Huitong specifically for high-temperature hot water and underfloor heating circulation systems. It is a unique "3-in-1" fitting—combining a quick-connect port, a male threaded end, and an extended thermal-insulation stem—that addresses multiple engineering pain points, such as burn risks during operation, cumbersome installation, difficult transitions between old and new piping, and poor compatibility with insulated pipelines.

Constructed from lead-free, high-temperature resistant forged brass with a composite sealing structure and a stainless steel self-locking quick-connect mechanism, the valve allows for rapid installation without welding or adhesives. Extended Stem Male Thread Quick Connect Brass Ball Valve supports non-destructive disassembly for maintenance and is compatible with concealed insulated piping and various mainstream plumbing materials, making it an ideal choice for residential heating and light industrial water circulation systems.

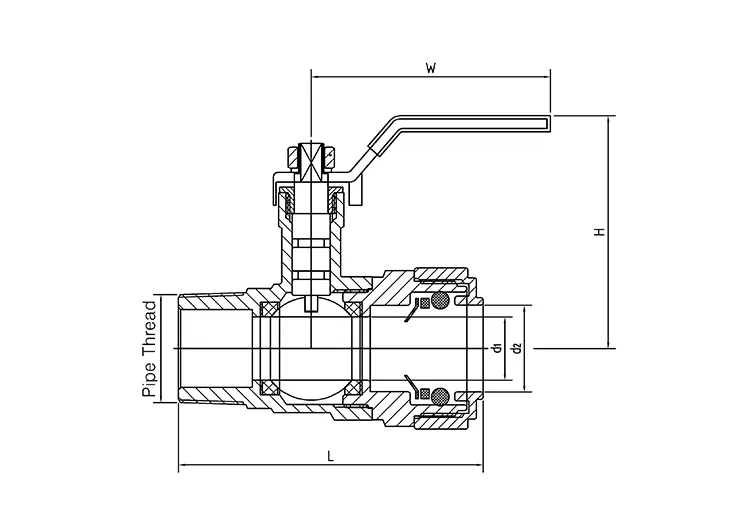

Technical parameters

3-in-1 Composite Interface

1. Features a differentiated dual-port design: one end utilizes a tool-free "push-in" quick-connect interface, while the other features a standard male thread. This dual-functionality meets the needs for both rapid installation and threaded connections, accommodating complex piping transition scenarios.

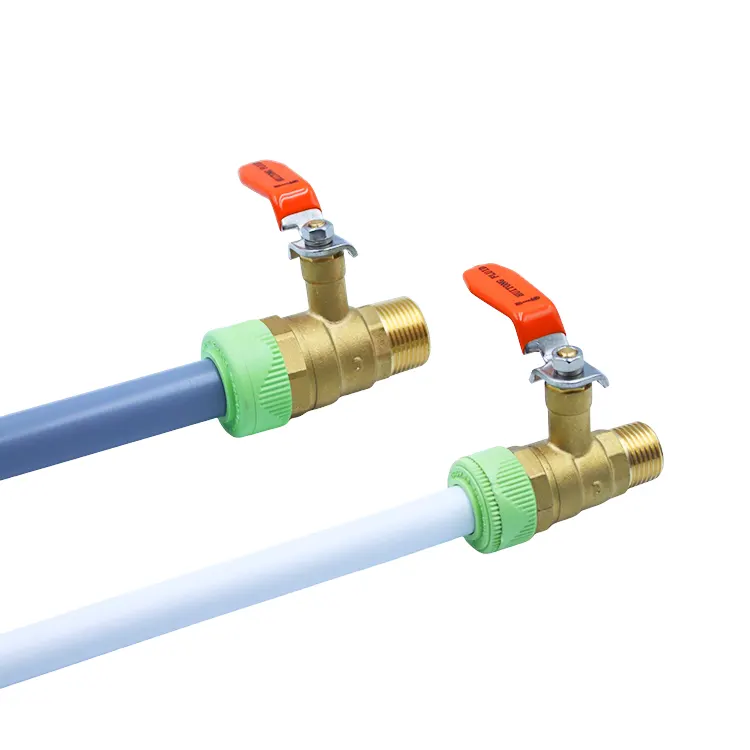

2. The quick-connect port incorporates a high-strength stainless steel locking-tooth mechanism that securely grips three mainstream pipe types: copper tubing, thin-walled stainless steel pipe, and PEX underfloor heating pipe. No heat fusion, adhesives, or specialized crimping tools are required, resulting in zero installation consumables.

3. The male threaded end complies with global standard fitting specifications, allowing for direct connection to various pipeline accessories without adapters. This reduces the number of connection points and structurally minimizes the risk of leakage.

Enhanced Safety Protection

1. The valve utilizes a specially designed extended, thermally isolated stem. This effectively blocks the transfer of heat from the valve body to the operating handle, completely solving the industry-wide problem of handles becoming too hot to touch during the operation of high-temperature hot water or underfloor heating systems.

2. Equipped with a reinforced, blow-out-proof stem structure, the valve withstands pressure fluctuations and surges during hot water circulation. This prevents stem loosening, detachment, or fluid ejection, significantly enhancing safety under high-pressure and high-temperature operating conditions.

3. 90°single-handle operation design: Features a short actuation stroke and smooth, effortless handling. Extended Stem Male Thread Quick Connect Brass Ball Valve enables rapid full-open/full-close control even in high-temperature sealed piping systems, making it ideal for applications requiring frequent cycling.

High-Temperature Resistant Materials

1. The valve body is forged from a single piece of lead-free DZR (dezincification-resistant) brass. The material is dense and uniform, offering excellent resistance to high temperatures, oxidation, and scaling; it resists corrosion and deformation during prolonged exposure to hot water.

2. Equipped with high-temperature resistant composite PTFE sealing components. Unlike standard seals designed for ambient temperatures, these withstand continuous hot water circulation without aging, hardening, or leaking, ensuring long-term sealing stability.

3. Full-bore internal structure: Allows unobstructed water flow without throttling or dead zones. Low flow resistance and minimal flow loss ensure efficient water delivery in underfloor heating, domestic hot water, and industrial circulating water systems.

Compact Body Structure

1. Compact and refined design: The valve body can be fully encased within pipe insulation, with only the extended stem handle exposed. This preserves the integrity of the pipeline's insulation system and prevents heat loss.

2. Suitable for concealed installations (in-wall or above-ceiling): It solves common installation challenges associated with bulky valves—such as the inability to apply insulation layers and localized condensation or heat loss on the pipeline.

3. Supports non-destructive disassembly and reuse: Maintenance, system modifications, or equipment replacements can be performed without cutting the piping, significantly reducing engineering maintenance costs and material waste.

Specialized Quality Control for High-Temperature Fittings

1. Raw material testing: All DZR brass raw materials undergo spectral analysis upon arrival to verify key performance indicators—such as high-temperature resistance and dezincification resistance—ensuring quality control at the source.

2. Finished product simulation testing: Every unit undergoes individual testing for airtightness, hydrostatic pressure resistance, and high/low-temperature cycling/aging. Key focus areas include the sealing stability of the extended stem and the locking strength of the quick-connect interface. 3. Full-Batch Traceability: Each product bears a unique batch code, with records archived for the entire process—from production and processing to testing. CE certification and material test reports are available upon shipment to meet overseas project acceptance and customs clearance requirements.

Manufacturer Warranty System

1. The Extended Stem Male Thread Quick Connect Brass Ball Valve comes with a 12-month manufacturer's warranty. We provide free remedial solutions for issues caused by manufacturing processes or material defects, such as seal leakage, switching malfunctions, or locking mechanism failure.

2. Our technical team specializes in high-temperature plumbing systems, offering highly practical guidance on quick-connect installation standards, pipe selection and matching, and troubleshooting leaks in high-temperature pipelines.

3. We provide rapid, multilingual after-sales support and offer customized piping solutions to global plumbing contractors and wholesalers, ensuring compatibility with local construction standards.

Standard Operating Recommendations

1. Push-fit Installation: Before installation, ensure the pipe end is cut cleanly without burrs and is free of internal debris. Align the pipe vertically with the quick-connect port and insert it at a steady speed; an audible "click" indicates the lock is engaged. Avoid angled or incomplete insertion, which can lead to future leaks.

2. Valve Operation: During daily use, rotate the handle gently by only 90°. Do not force the handle or rotate it beyond its travel limits; this prevents deformation of the extended stem under stress, protects the internal high-temperature sealing structure, and extends service life.

3. High-Temperature Operation: When starting or stopping hot water or underfloor heating systems, adjust water pressure and temperature gradually. Avoid sudden temperature fluctuations or instantaneous high-pressure surges to minimize seal wear and ensure long-term sealing stability.

4. Disassembly and Maintenance: Use specialized tools for disassembly during pipeline maintenance to smoothly release the locking mechanism. Do not pry or pull forcefully. Valves in good condition can be reused, reducing material costs for the project.

FAQ

Q1: Will the quick-connect interface loosen or leak after long-term use in high-temperature cycles?

A: The quick-connect port features thickened stainless steel self-locking teeth. It has undergone high- and low-temperature cycling aging tests, ensuring stable locking performance under high-temperature conditions without loosening due to thermal expansion or contraction. Paired with high-temperature resistant sealing components, it ensures zero leakage during long-term water circulation.

Q2: Which types of piping and systems is the Extended Stem Male Thread Quick Connect Brass Ball Valve compatible with?

A: It is compatible with copper pipes, thin-walled stainless steel pipes, and PEX underfloor heating pipes. It is widely used in domestic hot water systems, underfloor heating circulation systems, and light industrial circulating water circuits, making it suitable for the vast majority of residential and light industrial high-temperature plumbing projects.

Q3: Will wrapping the valve body in insulation material affect its operation or heat dissipation?

A: No. The main valve body can be fully encased in insulation, leaving only the operating handle exposed. This ensures that valve operation remains unaffected while maintaining the pipeline's insulation integrity—preventing localized heat loss or condensation—and meeting standards for concealed insulated piping installations.

Q4: What specific quality inspections are conducted for high-temperature applications?

A: In addition to standard airtightness and pressure-bearing tests, we conduct high- and low-temperature cycling aging tests. These specifically verify the sealing stability of the extended stem and the high-temperature locking strength of the quick-connect interface, simulating long-term hot water circulation to ensure the product performs reliably in complex, high-temperature environments.

Q5: What should be considered during daily use in high-temperature conditions?

A: Avoid operating the valve with excessive force and prevent sudden spikes or drops in water pressure; regularly inspect the seal at the valve stem interface. Gradually controlling temperature and pressure during system startup and shutdown minimizes seal wear and ensures the valve's long-term, stable operation.
