Male Thread Ferrule Brass Ball Valve with Butterfly Handle

The conventional ball valves on the market have round handles that are protruding and too narrow to operate in narrow pipelines. The welding-type joints are cumbersome to assemble and have a high risk of leakage. This Male Thread Ferrule Brass Ball Valve with Butterfly Handle can precisely address the industry's pain points. The product is made of a single-piece forged lead-free anti-zincated brass material, with a standard external thread on one side that is compatible with common pipe fittings, and a double flange structure on the other side that can lock the copper pipe without welding; the flat butterfly-shaped thin handle significantly reduces the occupied space, allowing for easy 90-degree opening and closing in concealed walls, narrow cabinets, and pipeline systems.

The internal chrome-coated ball body is paired with a thickened PTFE sealing seat, ensuring zero leakage in both cold and hot water supply directions. The full-diameter flow path reduces water pressure loss, and the anti-blow-out valve stem is compatible with daily water pressure fluctuations. The entire valve set undergoes full-dimensional standardized quality inspection upon leaving the factory, covering multiple pipe diameter specifications, and is suitable for three types of purchasing scenarios: home decoration retail, small-scale heating projects, and lightweight industrial circulation pipelines. It is a universal pipeline control valve that combines ease of installation, stability of use, and cost control.

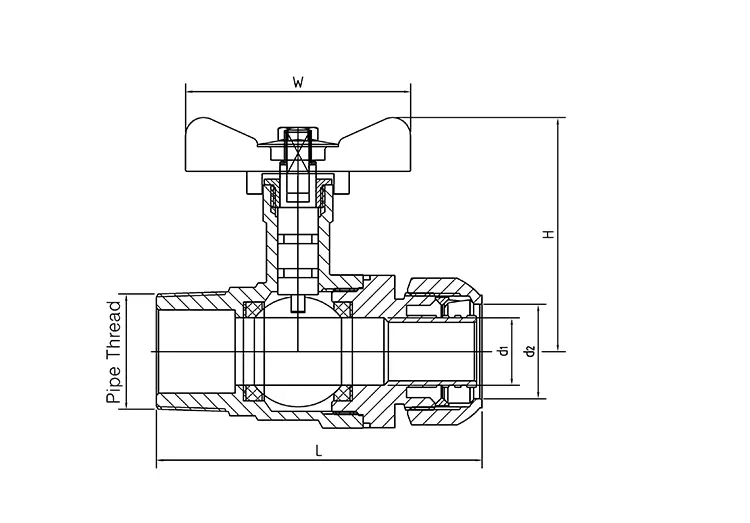

Technical parameters

Butterfly-shaped flat handle design

1. Ultra-thin and flat butterfly structure, occupying much less horizontal space than circular or long-handled handles. When the pipeline is close to the wall, in a narrow equipment cabinet, or in a ceiling cavity, etc., there will be no situation where the handle blocks the operation and prevents it from being operated.

2. Standard 90° single-trip opening and closing design. By simply moving the butterfly plate, the water supply can be quickly switched on or off. The switch status is clear and distinct, and the inspection personnel can easily distinguish the fully open and fully closed positions from a distance.

3. The opening and closing torque of the handle has been standardized and calibrated. With a single hand, it can complete the switch operation. Long-term high-frequency use will not cause jamming or loosening, and is suitable for home decoration scenarios where frequent control is required.

Dual-ended composite interface design

1. Precise CNC integrated extruded external thread. Universal specification. Male Thread Ferrule Brass Ball Valve with Butterfly Handle can directly connect with the vast majority of water and heating pipe fittings available on the market, without the need for additional purchase of reducer adapters, reducing leakage points caused by pipe connection.

2. Double-layer compression sleeve locking joint. After inserting the copper pipe with a smooth cut, tighten the nut to firmly hold the pipe. No welding machine or soldering required throughout the process. Eliminates multiple procedures such as welding cooling and weld cleaning, shortening the construction period.

3. The compression sleeve clamping has no compression damage. During later pipe maintenance and renovation, simply loosen the nut to remove the copper pipe without any damage. The intact valve and pipe can be reused, reducing long-term maintenance material costs.

Ensure long-term no-leakage for cold and hot water pipelines

1. Lead-free DZR anti-zinc-eating brass is forged as a single piece. The material is dense and resistant to pressure. It can transport cold and hot tap water for a long time without oxidation or scaling, and no heavy metals are released. It complies with the safety standards for home drinking water pipelines.

2. The surface is polished with hard chromium and the floating ball is combined with a thickened PTFE (polytetrafluoroethylene) valve seat. The sealing surface fits evenly. Both forward and reverse water flow can achieve bubble-level sealing. Under the impact of alternating cold and hot water pressure, it will not age or leak.

3. An internal anti-blow-out reinforced valve stem is installed to cope with the instantaneous water pressure fluctuations during the start and stop of the water path. It eliminates the risks of valve stem popping out and medium splashing, enhancing the safety of the operation of home and small equipment water pipelines.

Flow passage and overall structure

1. The straight-through, seamless large-flow inner cavity has low water resistance and small pressure loss, and there will be no problem of insufficient heating water circulation speed or reduced heating effect.

2. The Male Thread Ferrule Brass Ball Valve with Butterfly Handle is compact and small in size. The wiring arrangement is flexible. It can be adapted to both concealed and exposed piping, and will not occupy too much space in the decoration or equipment interior. It is suitable for standardized home decoration pipeline design.

3. A complete range of mainstream pipe diameters is available. There is no need to stock multiple types for procurement. It can be uniformly selected for home decoration water and electricity projects, floor heating, and small industrial circulation waterways.

Standardized full-process quality control system

1. Pre-in-process spectral analysis of raw materials: All copper billets entering the factory undergo spectral composition analysis. Thorough verification is conducted for lead-free, anti-deoxidation, and anti-compression indicators, thereby avoiding corrosion and cracking risks at the raw material level.

2. 100% basic tests for finished products: Each Male Thread Ferrule Brass Ball Valve with Butterfly Handle passes the shell water pressure resistance test, air tightness test for leakage prevention, and 10,000 times opening and closing durability test. Non-conforming products are sorted out and reworked separately.

3. Product-specific special verification: Separate tests are conducted on the external thread meshing accuracy, clamping force of the sleeve, and opening and closing torque of the butterfly handle. Targeted troubleshooting is carried out for three types of frequent faults: pipe material detachment, sealing leakage, and handle jamming.

4. Full batch code traceability management: Each product is engraved with an independent batch code. The process data of forging, processing, and testing are archived and retained. During shipment, material test reports and CE compliance qualifications are provided simultaneously to meet overseas customs clearance and engineering acceptance requirements.

Multi-scenario application scope

1. Residential water supply system: Full-house water supply entering the house, water control at the front end of the water heater, water supply lines in the kitchen and bathroom branches, flat handles suitable for concealed installation in walls for hidden pipelines.

2. Floor heating pipeline accessories: Front-end control valves of floor heating distribution and collection units, installation of internal control valves in small floor heating boxes without blocking the insulation layer, convenient for disassembly, maintenance and repair.

3. Small equipment circulation water lines: Household mold temperature machines, small heat exchange equipment, small industrial cold water circulation pipelines, suitable for compact installation space inside the equipment.

4. Small-scale industrial and commercial water and heating projects: Simple heating water supply renovation projects for apartments and shops, non-welding structure significantly reduces the on-site construction threshold, suitable for scattered and batch procurement.
