Male Thread Two-Position Compression Brass Ball Valve for Boiler Piping

Most ordinary boiler ball valves on the market have three major engineering problems: complicated welding process, vibration and displacement of the unit, and long-term high-temperature scaling and leakage. This Male Thread Two-Position Compression Brass Ball Valve for Boiler Piping is our targeted research and development product. It adopts external thread + double socket double-end composite interface, eliminating the need for copper pipe welding; combined with mechanical two-position limit handle, it counteracts the valve offset caused by continuous vibration of the equipment from the structural aspect; the forged DZR brass and thickened fluorine plastic sealing combination can withstand the long-term high-temperature water scale corrosion of the boiler, the full-diameter flow path reduces the water circulation resistance, and the compact body is suitable for narrow equipment cabinets.

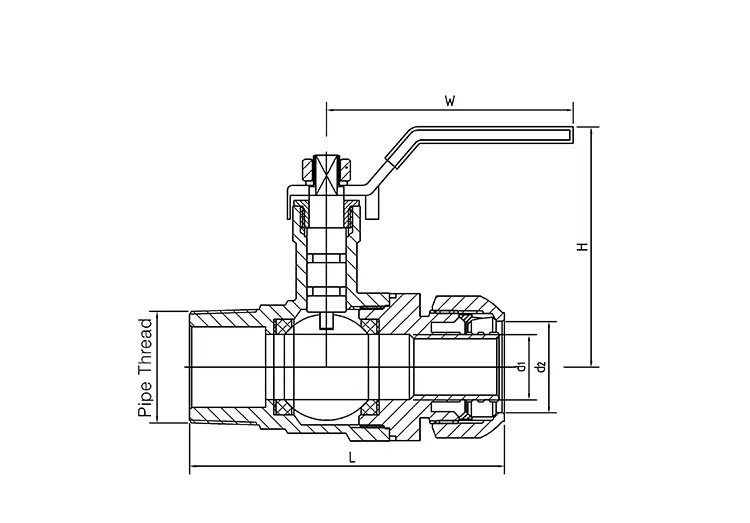

Technical parameters

Composite double-ended interface

1. Standard precision external thread end: The valve body end is precisely CNC-turned with a universal external thread, which can directly connect to the original equipment interfaces of gas boilers and mold temperature machines. No additional purchase of reducer connectors is required, reducing pipeline connection nodes and simultaneously lowering accessory procurement costs and leakage risks. It is suitable for standardized complete machine batch assembly.

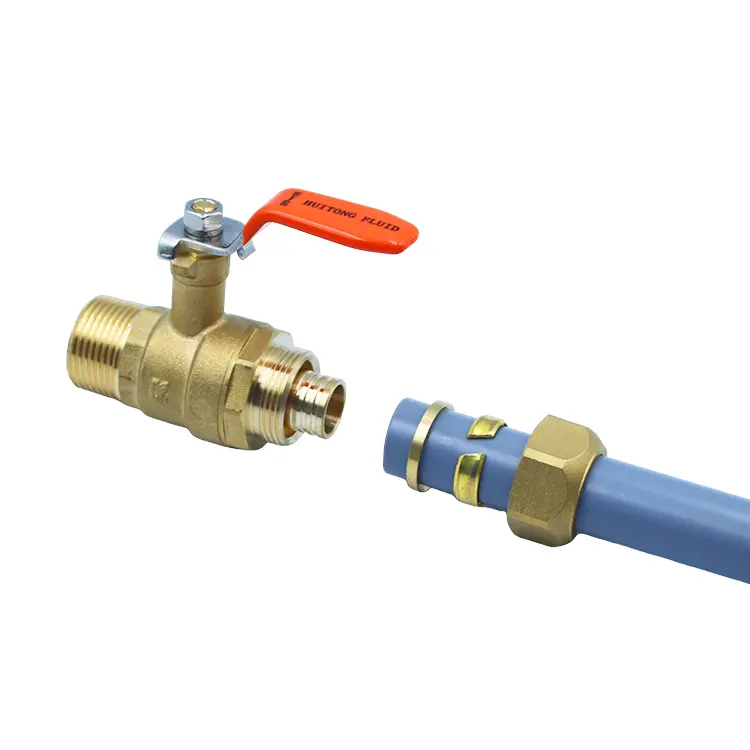

2. Dual ferrule locking structure: The other end is equipped with a dual-layer dual ferrule component. After inserting the flat-cut copper pipe and tightening the nut, it can be firmly locked. No welding machine, solder, or cooling process is needed. A single person can quickly complete the pipeline assembly. This significantly improves the assembly efficiency of the boiler production line and eliminates the risk of high-temperature damage to the pipe materials during welding.

3. Compatible with multiple types of metal piping: Male Thread Two-Position Compression Brass Ball Valve for Boiler Piping is suitable for common copper pipes used in boilers and stainless steel pipes for instruments. The ferrule nut can be loosened to disassemble the pipe without damaging it. During equipment maintenance or pipe modification, the valve and pipe can be reused. Long-term batch matching can continuously reduce engineering operation and maintenance material expenditures.

Two-position limit locking handle

1. Mechanical two-position locking mechanism: Unlike the ordinary handle with unlimited position, the Male Thread Two-Position Compression Brass Ball Valve is equipped with an independent locking mechanism. After switching, it can be fixed in the fully open or fully closed position. It will not slowly slide to the half-open state due to the continuous vibration of the boiler pump and fan, thus eliminating the problems of half-open leakage and insufficient heating efficiency.

2. Anti-vibration structure has undergone 10,000 times simulation tests under various working conditions: The factory conducts special simulation tests under 24-hour continuous vibration conditions of the boiler to conduct durability verification. The biting force of the limit locking mechanism is uniform and stable. Even when used in an uninterrupted heating system throughout the year, there will be no loosening of the position, ensuring the long-term controllability of the water flow state.

3. 90° short stroke operation: The handle only needs to rotate 90° for opening and closing. The operation force is gentle. Even if it is installed in the deep and narrow boiler cabinet, no large operation space needs to be reserved. Daily inspection and water path switching operations are convenient and effortless.

High-temperature resistant and scale-resistant valve body seal

1. Cast DZR lead-free brass base material: Integrated hot forging process of anti-zinc-removing brass, with a material density far exceeding that of die-cast valve bodies. It is less prone to oxidation and water scale formation during long-term transportation of boiler hot and cold cycle hot water, and does not release heavy metals to pollute the circulating medium, meeting the safety standards for domestic heating and industrial heat exchange equipment water use.

2. Chrome-plated floating ball + thickened PTFE valve seat: The surface of the ball is hard chrome polished, and it is paired with a thickened fluorine polymer sealing seat. It can closely seal in both forward and reverse water flow, coping with the alternating water pressure impact caused by frequent boiler start-stop. Long-term use does not harden or leak water, reducing the frequency of equipment shutdown and maintenance.

3. Anti-blowout reinforced valve stem: An additional limit and anti-detachment structure is added at the bottom of the valve stem to strengthen the design for instantaneous high pressure during boiler waterway start-stop, avoiding valve stem popping out and water or hot oil and hot water splashing, enhancing the operational safety coefficient of the boiler whole machine.

Full-bore compact flow channel design

1. Straight-through with no dead space large flow cavity: There are no throttling protrusions or accumulation in the interior, resulting in low heat loss during hot water circulation. There will be no problem of insufficient pipeline pressure drop or heat generation attenuation of the boiler, ensuring stable temperature control effect of the heat exchange unit and mold temperature machine.

2. Compact and lightweight overall design: Male Thread Two-Position Compression Brass Ball Valve for Boiler Piping has a small overall volume and does not occupy extra space within the equipment, making it convenient for boiler manufacturers to standardize the wiring arrangement of the cabinet. There is no need to widen the equipment shell for the valve alone, and it can control the production material cost of the entire machine.

3. Full coverage of multiple pipe diameters: The collets and threads are of various sizes, covering the mainstream pipe specifications of small and medium-sized gas boilers, heat exchange stations, and mold temperature machines on the market. Equipment manufacturers can batch-prepare in advance, simplifying the management of component procurement categories.

Boiler Pipe Fittings Exclusive Quality Inspection System

1. Pre-inplant Spectral Analysis of Raw Materials: All brass billets entering the factory undergo spectral composition analysis to verify the lead content, high-temperature resistance, and anti-zinc loss core indicators. Any billets with substandard materials are eliminated, thus avoiding the problem of valve body corrosion and cracking under long-term high-temperature conditions at the raw material level.

2. 100% Final Product Triple Basic Tests: Each Male Thread Two-Position Compression Brass Ball Valve for Boiler Piping passes the shell water pressure strength test, bubble-type air tightness leak detection, and ten-thousand times opening and closing durability test. All basic sealing, pressure-bearing, and wear resistance performance must meet the standards before being warehoused.

3. Special Boiler Operating Condition Triple Verification: Additional separate tests are conducted on the external thread engagement accuracy, double sleeve clamping locking force, and double position limit anti-offset firmness to simulate the real operating conditions of the boiler under long-term vibration. This specifically addresses the problems of pipe material slippage and seal leakage that occur frequently in heating equipment piping systems.

4. Full Batch Coding Traceability Management: Each product is engraved with an exclusive batch code. The process data of forging, processing, and testing are permanently archived for complete traceability. For each shipment, a copper material test report, CE compliance certification, and full item quality inspection documents are provided simultaneously to meet all requirements for importing heating equipment into various countries and for project acceptance and bidding in engineering projects.

One-stop original equipment manufacturer (OEM) support services

1. Complete compliance qualification delivery: For bulk purchase orders, paper and electronic versions of material reports, CE certification, and factory inspection reports can be provided simultaneously. The materials are complete and standardized, eliminating the need for additional third-party testing. Efficient customs declaration and overseas project registration for equipment can be completed.

2. Exclusive technical guidance for heating pipeline: The professional technical team specializing in boiler accessory fittings can provide one-on-one guidance on double-bursting copper tube assembly specifications, overall waterway debugging of boilers, and specialized troubleshooting for sealing and leakage faults. This shortens the equipment debugging cycle for customers.

3. Rapid online after-sales response in multiple languages: Offering multi-language online consultation services to global boiler equipment manufacturers and heating project contractors. Customized pipeline adaptation solutions can be provided for large-scale heat exchange stations and boiler complete machine orders. Long-term stable supply of original factory replacement seals and burst rings is also available.

4. 12-month OEM whole machine warranty: The entire Male Thread Two-Position Compression Brass Ball Valve for Boiler Piping series uniformly provides a 12-month warranty. Under normal boiler cold and hot circulation conditions, issues such as material and production process-related leakage, limit failure, and burst ring loosening can all be supported by free technical rectification and component replacement.

FAQ

Q: What special tests have been conducted for the boiler equipment vibration conditions compared to ordinary ball valves?

A: In addition to the three common tests of water pressure, air tightness, and opening and closing durability, we have additionally added three specific tests for boilers: external thread accuracy matching test, double socket clamping anti-detachment pipe strength test, and double position limit anti-vibration offset durability test. These tests fully simulate the real 24-hour vibration operation conditions of the boiler, preventing two types of frequent faults in heating equipment - pipe slippage and seal leakage - from the very beginning.

Q: What heating and heating equipment does the Male Thread Two-Position Compression Brass Ball Valve fit?

A: It is widely applicable to gas-fired hot water boilers, electric heating heating furnaces, plate heat exchange stations, and cold and hot circulation pipelines of mold temperature machines. The valve body adopts industry-standard universal external threads, and there is no need for additional reducer joints. It can directly connect to the original factory interfaces of most boiler main units. The multi-coupling specifications cover the mainstream copper pipe diameters on the market, and the entire machine has strong compatibility.

Q: Can the copper pipe with double ferrule connection be disassembled without damage and reused during the later boiler inspection and renovation?

A: It is supported to disassemble without damage and reuse. By loosening the locking nut of the ferrule, the copper pipe can be smoothly removed. The pipe material will not experience compression deformation, cracking or deformation. The intact valve and copper pipe can be reassembled and used again. Long-term batch matching can continuously reduce the procurement cost of maintenance materials for boiler equipment.

Q: In the confined and enclosed interior of the boiler cabinet, will this valve operation handle be blocked by the insulation layer and the equipment sheet metal and unable to be operated?

A: The overall structure of the valve body is compact. The 90° short-stroke exposed handle does not require a large operating clearance. The reserved space in the standard sealed boiler cabinet can easily complete the rotation control, and there will be no situation where the handle is blocked, the operation is strenuous, or the water path cannot be switched. It is compatible with the standardized cabinet design of the entire machine.
