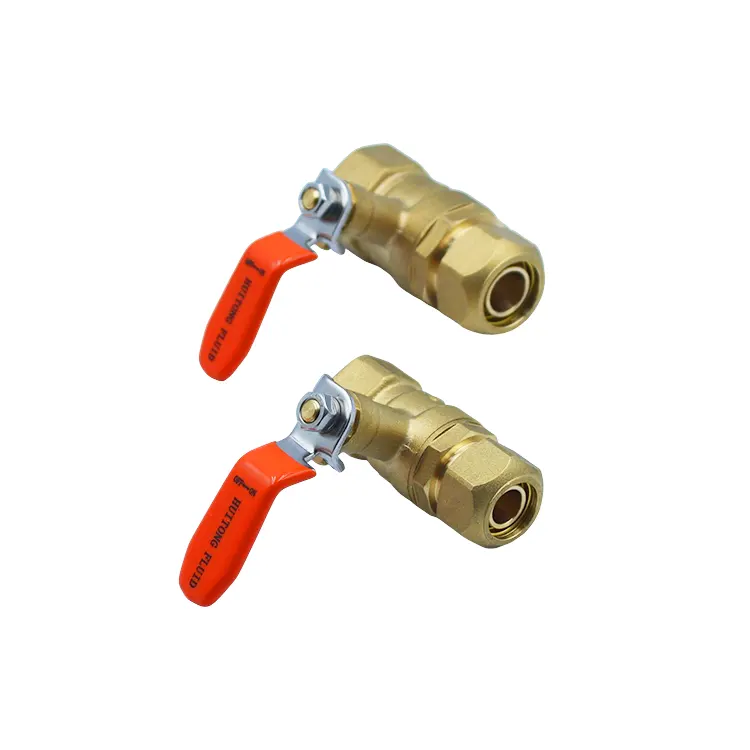

Female Thread Two Position Ferrule Boiler Brass Ball Valve

Compared with common water and heating ball valves, the Female Thread Two Position Ferrule Boiler Brass Ball Valve is specifically designed to address four major engineering challenges in boiler equipment: vibration-induced tube detachment, limited installation space in small cabinets, cumbersome copper pipe welding construction, and two-way leakage of hot and cold media. One end of the product is directly connected to the boiler body with standard internal threads, while the other end features a two-position double ferrule structure that can securely lock the copper pipe and instrument steel pipe without welding. It is equipped with a dual-gear limit handle, a valve stem with anti-sway function, and a thickened Teflon seal. It is resistant to water scale and high temperatures, has low flow loss, is easy to disassemble, maintain and repair, and is fully inspected and manufactured according to the exclusive boiler pipeline quality control system. It is available in multiple specifications to meet the requirements of various small and medium-sized boiler equipment.

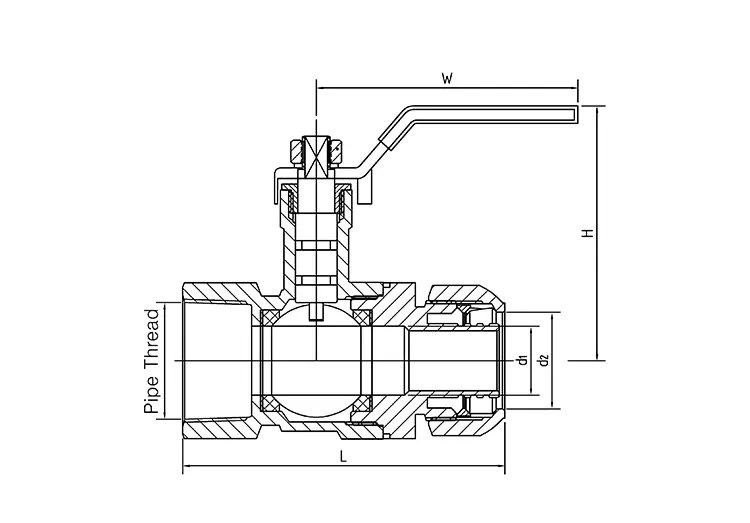

Technical parameters

How does the interface structure simplify the assembly of boiler piping?

1. The threaded end inside the valve adopts precise CNC threads, which can directly connect to the original equipment interface of the boiler without the need for additional reducer adapters, reducing the number of leakage points in the piping and the types of purchased components.

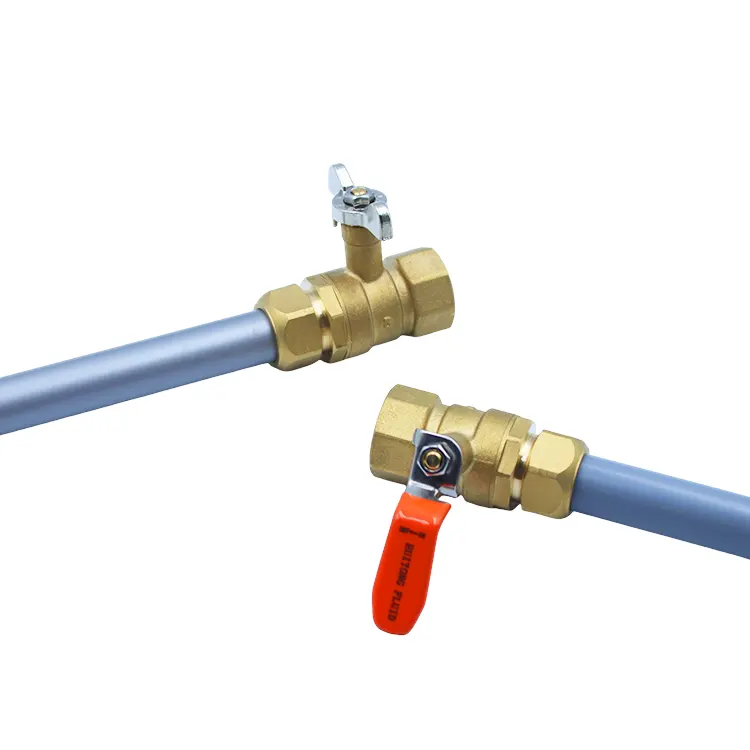

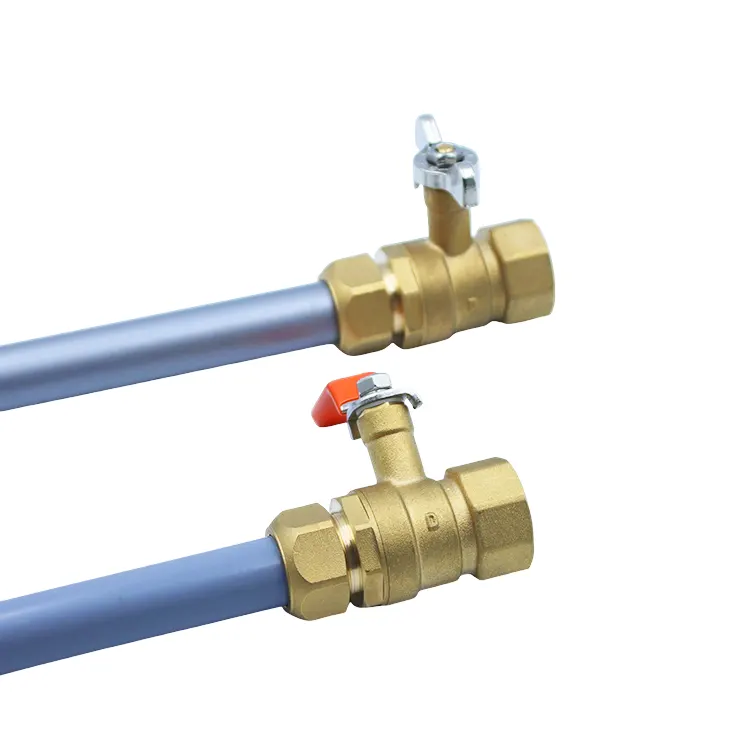

2. The other end is equipped with a two-position double socket locking component. Installation does not require welding or heat fusion equipment. Simply insert the copper pipe and tighten the socket nut to firmly lock the pipe material, significantly reducing the assembly time for the entire boiler.

3. It is compatible with both copper pipes and stainless steel instrument pipes, the mainstream piping materials for boilers. The disassembly and reassembly do not damage the pipe material. During equipment maintenance and pipe system renovation, the valve can be reused, reducing the cost of equipment operation and maintenance consumables.

How does the handle design avoid safety hazards?

1. The handle is equipped with independent full-open and full-close dual-position limit locking clips. After the valve is opened or closed, it can be locked in a fixed position, preventing the handle from shifting or causing leakage when the boiler is running for a long time.

2. The limit structure of the Female Thread Two Position Ferrule Boiler Brass Ball Valve has a mechanically tight engagement. After undergoing a million times of vibration simulation tests, the position will not slip under continuous cyclic conditions, effectively controlling the on-off state of the boiler waterway.

3. The 90° standard opening and closing stroke ensures moderate operation force. Even in the narrow interior of the boiler cabinet, the handle can be easily turned, making daily equipment inspection and regulation convenient.

How does the valve body and sealing configuration adapt to the high-temperature scale formation conditions of the boiler?

1. The Female Thread Two Position Ferrule Boiler Brass Ball Valve is made by forging DZR lead-free brass in one piece. The material is dense and resistant to high temperatures. It is not prone to oxidation and scaling when in contact with boiler hot water and steam for a long time, and will not release heavy metals to pollute the circulating medium.

2. The built-in chrome-plated floating ball body is combined with a thickened PTFE (polytetrafluoroethylene) valve seat. The bidirectional sealing performance is balanced, and zero leakage can be achieved even under alternating cold and hot water pressure impacts. It can withstand pressure fluctuations caused by frequent boiler start-ups and shutdowns.

3. A reinforced valve stem with anti-swaying function is equipped to cope with instantaneous high pressure impacts in the boiler waterway. This prevents the valve stem from popping out and avoids the risk of medium splashing, thereby enhancing the safety of the entire boiler operation.

What installation conditions does the shape design of the product meet for the boiler cabinet?

1. The valve body is equipped with a straight-through full-diameter flow channel, without throttling dead corners, resulting in low water flow resistance and will not cause insufficient boiler water circulation pressure drop or decrease in heating efficiency.

2. It is compact and small in size, suitable for most standard boiler sealed cabinets, without the need to reserve a large installation space, making it convenient for equipment manufacturers to standardize the wiring and layout of the entire machine.

3. Multiple specifications of sleeves and thread sizes are available, covering all types of small and medium-sized gas furnaces, electric heating equipment, and plate heat exchanger units for comprehensive matching needs.

From which dimensions should the factory quality be controlled?

1. Pre-screening of raw materials: All brass billets undergo spectral composition testing to verify the core indicators such as no lead, anti-dezincification, and high-temperature resistance, ensuring that they are suitable for the long-term high-temperature cyclic working conditions of the boiler.

2. 100% inspection of finished products: Each valve undergoes three basic tests in sequence: shell water pressure strength test, bubble-type leak detection test, and 10,000 times opening and closing durability test. Non-conforming products are directly sorted and reworked.

3. Special calibration for boiler conditions: Separate tests are conducted on the locking force of the double socket, the internal thread size accuracy, and the reliability of the two-position limit prevention to avoid frequent boiler faults such as vibration-induced pipe detachment and leakage of the seal.

4. Full batch traceability management: Each Female Thread Two Position Ferrule Boiler Brass Ball Valve is labeled with an independent batch code. The process data of forging, processing, and testing are archived. When shipping, material inspection reports and CE compliance certificates can be provided simultaneously to meet the requirements of overseas equipment engineering acceptance and bidding.

Why choose us?

1. Complete qualification delivery: For bulk equipment orders, we can provide material reports (MTR), CE certification, and factory inspection documents. All the materials are complete and compliant, ensuring smooth customs clearance, project acceptance, and equipment bidding filing.

2. Special technical guidance: Our technical team has extensive experience in boiler piping systems. We can offer one-on-one solutions for copper pipe sleeve assembly, overall boiler waterway debugging, and troubleshooting for sealing and leakage issues.

3. Long-term after-sales supply: We provide stable original factory replacement parts supply for domestic and overseas boiler equipment manufacturers. Customized pipe system solutions can be provided for large-scale heating unit orders.

4. Standardized quality guarantee: All series of boiler ball valves uniformly offer 12-month original factory warranty, covering material and production process-related inherent quality defects, eliminating concerns about batch procurement.

FAQ

Q1: This boiler ball valve has a double socket structure. Is it necessary to weld the copper pipe during installation?

A: No, welding is not required at all. The double socket relies on the nut to press and lock the pipe material. The pipe material is cut flat and directly inserted into the socket interior. Tightening the nut fixes the seal, eliminating the need for welding equipment, welding materials, and post-welding cooling processes. This significantly improves the assembly efficiency of the entire boiler.

Q2: Compared to the ordinary non-gear handle, what are the advantages of the two-position limit handle in boiler equipment?

A: Boiler fans and pumps operate continuously, generating high-frequency vibrations. The ordinary handle is prone to gradually shift to a half-open state, resulting in water leakage and heating abnormalities. The two-position limit can lock the two positions of full open and full close, unaffected by equipment vibrations, ensuring stable on-off state during long-term operation.

Q3: Will the DZR brass valve body accumulate a large amount of scale and get clogged over time when exposed to boiler hot water?

A: The forged DZR brass has better anti-scaling and anti-oxidation properties than ordinary die-cast brass. The valve body flow channel is smooth without dead corners. Combined with the full diameter structure, water scale and impurities are not easily accumulated. It is suitable for the boiler's continuous hot water circulation operation throughout the year.

Q4: Can the valve ensure zero leakage in both directions of water flow?

A: Yes. The Female Thread Two Position Ferrule Boiler Brass Ball Valve uses a floating chrome-plated ball body and a thickened PTFE double-sided valve seat. Both forward and reverse medium flow can achieve a tight and secure seal. The boiler's cold and hot circulation water paths can be stably protected against leakage.
