230℃ High Temperature Right Angle Lockable Oil Release Valve

The 230℃ High Temperature Right Angle Lockable Oil Release Valve is a specially designed sewage and oil release valve for thermal oil equipment, high-temperature circulation systems, and industrial oil tanks. Unlike conventional straight-through valves, it features a unique L-shaped right-angle structure, specifically addressing the challenges of limited space at the bottom of industrial equipment, interference from bent pipes, and inconvenient disassembly and maintenance.

The product is made with high-temperature-resistant forged alloy and imported fluorine rubber sealing components, capable of withstanding 230℃ high-temperature thermal oil media for a long time. It is equipped with an independent mechanical locking structure to prevent accidental opening and oil leakage, and also has advantages such as shock resistance, pressure resistance, and rapid oil drainage. It is suitable for various high-temperature heat exchange and thermoforming industrial equipment and is a highly safe and highly adaptable valve component for industrial high-temperature oil circuits.

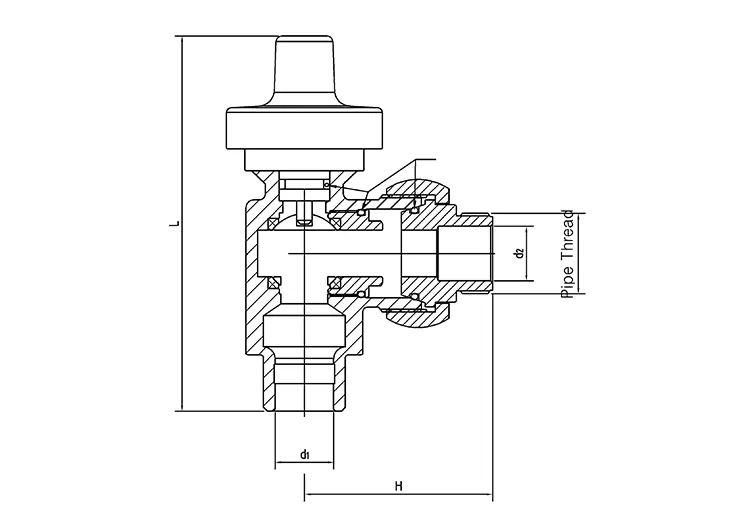

Technical parameters

What installation pain points can the right-angle L-shaped structure solve?

1. By adopting a one-piece 90° right-angle elbow design, it is specifically adapted to the narrow embedded installation spaces at the bottom of heat transfer oil furnaces, mold temperature machines, and industrial oil tanks. This completely avoids the problems of conventional valve pipeline bending and space interference.

2. It simplifies the pipeline layout process at the equipment factory, eliminating the need for additional pipe bending and the installation of adapter components. The pipeline arrangement is more regular, effectively reducing the equipment assembly process and pipeline leakage points.

3. It is suitable for equipment installation in a sealed environment, does not occupy additional external space, and at the same time supports the connection of external hoses, enabling centralized oil collection and sewage discharge. The operation process is clean and free of oil stains, and is suitable for standardized industrial operation scenarios.

How to ensure stability at 230℃ operating conditions?

1. The 230℃ High Temperature Right Angle Lockable Oil Release Valve is made by hot forging a high-strength, high-temperature-resistant alloy. It undergoes high-temperature aging treatment, resulting in a stable material structure. It is unlikely to soften, deform, or crack under long-term 230℃ continuous high-temperature conditions, maintaining a consistently stable mechanical strength.

2. It is equipped with an imported FPM fluorosilicone composite sealing component. Compared to ordinary rubber seals, it has significantly improved heat resistance, oil resistance, and anti-aging properties. It can withstand long-term high-temperature thermal oil corrosion and thermal shock, eliminating the risk of high-temperature leakage.

3. The overall valve body has excellent pressure resistance and shock resistance. It can be adapted to the long-term vibration conditions of industrial equipment and will not experience seal loosening, valve body detachment, or oil leakage problems due to frequent equipment vibrations.

How to enhance the safety of industrial oil pipelines?

1. Equipped with an independent mechanical locking handle, featuring a dual unlocking operation design, different from ordinary valves without locks, it can effectively prevent accidental opening of the valve due to equipment vibration, external force impact, or accidental touch.

2. It completely eliminates the risks of high-temperature oil splashing, oil leakage, and pressure relief in industrial accidents, significantly improving the operational stability of high-temperature oil pipeline equipment, and is suitable for continuous production scenarios in factories.

3. The locking mechanism has undergone 10,000 times opening and closing durability tests, with precise locking engagement and firm locking, ensuring no jamming or failure even under long-term and high-frequency usage, and maintaining a reliable and durable safety protection performance.

How to optimize the operation efficiency of oil discharge?

1. The 230℃ High Temperature Right Angle Lockable Oil Release Valve adopts a direct-through, non-angled, large-flow channel without dead corners. This design minimizes the resistance of hot oil flow, making the oil discharge fast and thorough, with no residual oil remaining, effectively improving the operation efficiency of equipment for oil replacement and sewage discharge.

2. It uses precise standard universal threads, which can directly match the interfaces of mainstream heat transfer oil boilers, heat exchange equipment, and mold temperature machines on the market. No additional conversion connectors are required, saving procurement costs and installation time.

3. It covers multiple specifications of threads, meeting the requirements of various industrial high-temperature equipment. It can meet the batch engineering procurement and customized adaptation needs for different working conditions and equipment models.

How to strictly control the quality at the factory exit?

1. Pre-in-process inspection of raw materials: All alloy raw materials undergo spectral composition analysis, combined with high-temperature aging treatment, and the material's resistance to high temperature, pressure, and aging indicators are strictly verified. This ensures that the products are adapted to the extreme working conditions of 230℃ from the very beginning.

2. Full-item and full-coverage inspection of finished products: Each finished product 100% passes the shell water pressure sealing test, bubble-type air tightness leak detection, and ten-thousand times opening and closing durability test. Only after meeting the basic performance standards can it be stored.

3. Specialized testing for working conditions: For the smoothness of the right-angle flow path, the reliability of the locking handle to prevent accidental contact, and the heat resistance limit of the fluorine rubber seal, three specialized tests are conducted to avoid common faults such as oil blockage, lock failure, and high-temperature leakage.

4. Full-chain traceability management: Each product is marked with an exclusive batch code. The data of the forging, processing, and testing throughout the process is archived, allowing for complete traceability. When shipping, material reports and ISO compliance qualifications can be provided to meet the standards for engineering bidding and acceptance.

What kinds of after-sales services can be provided?

1. Complete qualification delivery: For large-scale orders, we can provide a complete set of material test reports, ISO certifications, compliance qualification documents, and other relevant documents that are suitable for various commercial scenarios such as overseas customs clearance, industrial engineering acceptance, and project bidding.

2. Special technical support: Our technical team has deep expertise in the field of high-temperature oil circuits. We can provide one-on-one guidance for high-temperature pipeline assembly, locking mechanism debugging, and high-temperature sealing leakage detection to solve problems related to equipment compatibility.

3. Efficient cross-border after-sales: We support rapid online responses in multiple languages. We provide long-term spare parts supply services for industrial equipment manufacturers. Customized oil pipeline adaptation solutions can be provided for large-scale equipment orders.

4. Stable quality guarantee: All products enjoy a 12-month original factory warranty. It fully covers production materials and process defects, eliminating worries about batch purchasing and equipment matching.

FAQ

Q1: Which high-temperature media is this valve suitable for?

A: The 230℃ High Temperature Right Angle Lockable Oil Release Valve can continuously withstand a temperature of 230℃. It is specifically designed for various heat transfer oil media. With its high-temperature resistant alloy valve body and fluorine rubber sealing components, it can operate stably in a high-temperature and hot oil circulation environment for a long time without aging, leaking, or deteriorating. It is not suitable for scenarios with ultra-high-temperature steam or highly corrosive media.

Q2: Compared to straight-through valves, what are the industrial advantages of the L-shaped right-angle structure?

A: Straight-through valves occupy a large amount of vertical space at the bottom of the equipment, making it prone to pipe bending interference. The L-shaped right-angle structure fits the narrow installation positions of the equipment, eliminating the need for pipe bending, making the installation more regular, and simplifying the equipment assembly process, reducing pipe leakage points, and suitable for the installation scenarios of sealed and embedded industrial equipment.

Q3: Can the locking structure completely prevent accidental opening and oil leakage caused by equipment vibration?

A: Yes. The product adopts an independent mechanical locking + dual unlocking design. The locking bite strength is high. After equipment vibration simulation tests, it can effectively resist the risks of accidental opening caused by equipment operation vibrations and external impacts. From the structural perspective, it avoids the safety hazard of high-temperature oil leakage and is suitable for continuous industrial production.

Q4: How does the flow design of the valve improve the efficiency of equipment's sewage and oil replacement?

A: The built-in straight-through with no dead corners large flow channel has extremely low resistance to hot oil flow, and the oil drainage speed is faster. It can completely drain the residual oil and impurities inside the equipment, without any oil residue, significantly reducing the time for equipment oil replacement and sewage maintenance, and improving the operational efficiency of industrial equipment.
