Pipe Fitting with Flow Control Valve

Hydraulic imbalance across branch circuits is a common issue in most water-based underfloor heating systems. Pipes closer to the manifold often experience high flow rates and excessive temperatures, while distant pipes suffer from low flow and insufficient heating. This leads to significant temperature disparities, increased energy consumption, and reduced living comfort.

Pipe Fitting with Flow Control Valve vs. Standard Pipe Fittings

Standard pipe fittings serve only to connect pipes; they cannot regulate flow and fail to address the core issue of uneven heating.

The Pipe Fitting with Flow Control Valve is a multifunctional component specifically designed to optimize hydraulic balance in underfloor heating systems, integrating pipe connection, flow regulation, and leak-proof sealing. It is forged from thickened HPb59 brass with a nickel-plated finish for rust and scale resistance, and features a dual-layer EPDM high-temperature seal structure capable of withstanding the demanding thermal cycling conditions of underfloor heating. Equipped with a precision-calibrated valve core, it allows for independent control of flow in individual branches, accurately balancing temperatures throughout the home. Its compact design allows for installation and removal without altering main pipelines, making it suitable for tight manifold cabinets. It is compatible with mainstream piping materials such as PEX and aluminum-plastic composite pipes. Available in various sizes, it covers a wide range of HVAC projects—from residential homes to retail shops and office buildings—serving as a key component for hydraulic balancing and ensuring stable heating performance.

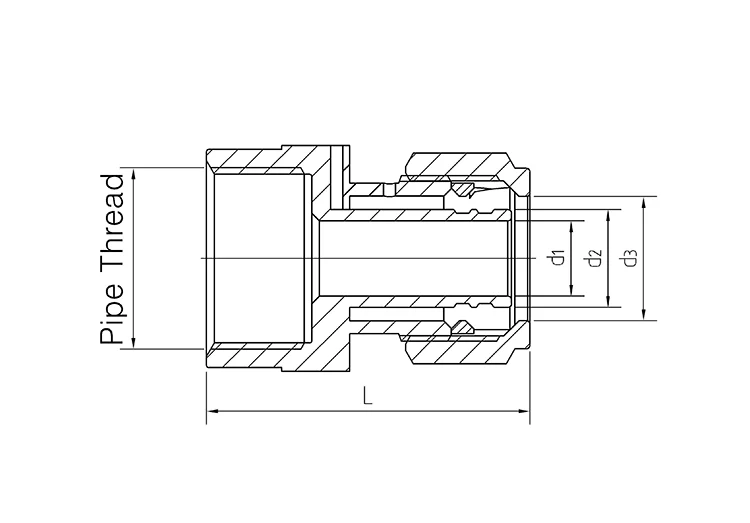

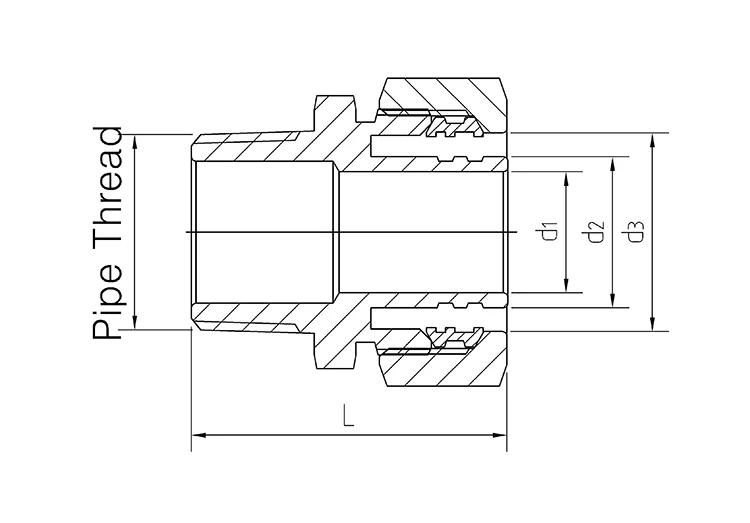

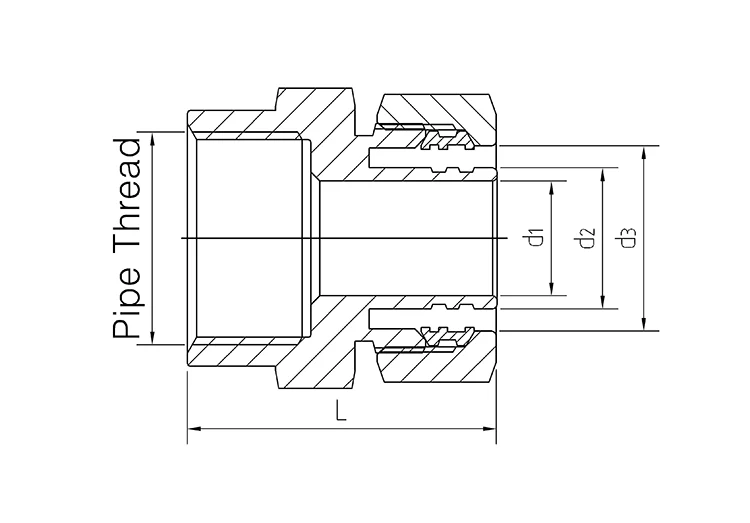

Technical parameters

Valve Body Material Characteristics

1. Precision-Forged Brass Base

Manufactured via integral hot forging using thickened HPb59 industrial brass, the valve body features uniform wall thickness and a dense structure free from sand holes or air pockets. It offers excellent pressure resistance, withstands the long-term cyclic water pressure of underfloor heating systems, and is highly resistant to deformation or cracking.

2. Protective Nickel Plating

The valve body undergoes a nickel-plating process that effectively isolates it from moisture and mineral corrosion. This prevents scale buildup, oxidation, and rusting caused by prolonged water flow, thereby enhancing durability and making Pipe Fitting with Flow Control Valve suitable for HVAC systems that operate year-round.

3. Compliant, Eco-friendly Materials

Brass raw materials undergo batch-by-batch spectral analysis to ensure lead content meets safety standards and prevents heavy metal leaching. The product complies with safety regulations for residential heating piping, making it ideal for indoor home heating systems.

Hydraulic Regulation Functionality

1. Precision Flow Adjustment

Equipped with a specialized calibrated valve core featuring clear, precise markings, the unit allows for fine-tuning of water flow in individual branches based on floor plan layout and pipe length. This resolves common industry issues such as uneven flow and excessive temperature differences between near and far heating circuits.

2. Whole-House Hydraulic Balance

Independent flow control for each circuit balances water circulation speeds and supply volumes. This prevents localized overheating or cold spots, ensuring uniform heating temperatures throughout the home and improving overall heating consistency.

3. Reduced Heating Energy Consumption

Optimizes piping circulation efficiency by eliminating energy waste caused by turbulent flow or ineffective circulation. It stabilizes heating efficiency, effectively lowering long-term operational costs.

Sealing and Connection Structure

1. Dual-Layer EPDM Sealing

Features dual high-temperature resistant EPDM gaskets that have passed rigorous high-temperature cycling and pressure tests. These gaskets resist hardening, aging, and deformation under the thermal cycling conditions typical of underfloor heating, ensuring a long-lasting, reliable seal.

2. Precision Threaded Connection

Utilizes CNC precision-machined threads for a tight fit and high coaxial alignment. Uniform thread clearance eliminates the risk of leakage or dripping at connection points during pressurized operation.

3. Robust Operational Adaptability

The dual-layer sealing structure is designed for the high-pressure water circulation typical of underfloor heating. It withstands prolonged static water immersion and thermal shock, making it suitable for continuous, year-round heating operations.

Installation Advantages

1. Installation Without Piping Modification

Easy to install and remove without the need to cut or modify main underfloor heating pipes. It serves as a direct replacement for standard fittings, offering a simple, efficient installation process suitable for both new construction and renovation projects.

2. Compact Design for Tight Spaces

Features a streamlined, compact structure that minimizes space usage within underfloor heating cabinets; perfectly suited for installation in restricted areas such as compact underfloor heating manifolds or narrow ceiling pipe shafts.

3. Broad Compatibility

Offers various thread sizes and is compatible with mainstream heating pipe materials (e.g., PEX, aluminum-plastic composite pipes); designed to work seamlessly with underfloor heating manifolds from various brands.

Standardized Quality Control System

1. Pre-production Raw Material Testing

Brass raw materials undergo batch-by-batch spectroscopic and physicochemical analysis; valve cores and gaskets are individually subjected to high-temperature pressure and repeated adjustment durability tests to ensure only qualified components are used.

2. Comprehensive Finished Product Inspection

Every unit undergoes 100% testing for hydrostatic sealing, flow scale accuracy, and thread fit precision, effectively preventing issues such as flow imbalance, connection leaks, or sticking during adjustment.

3. Full-Batch Traceability

Each Pipe Fitting with Flow Control Valve is laser-marked with a unique batch code, ensuring full production traceability; material test reports and factory certificates are available to meet acceptance standards for both residential and commercial HVAC projects.

After-Sales Support Services

1. 12-Month Manufacturer Warranty

Includes a 12-month manufacturer warranty covering inherent quality issues such as material defects, workmanship flaws, and seal failures.

2. Professional Hydraulic Balancing Guidance

Our technical team assists clients with hydraulic balancing, valve core adjustment, and component replacement guidance to resolve uneven heating issues on-site.

3. Cross-Border Customization & Supply

Multilingual customer service handles global procurement needs; customization services are available for large-scale projects to meet regional HVAC installation standards.

4. Readily Available Spare Parts

We maintain a stock of wear-prone parts—such as gaskets and valve cores—to facilitate future maintenance and replacement, thereby reducing long-term operational and maintenance costs.

Key Application Scenarios

1. Residential Whole-House Underfloor Heating

Suitable for underfloor heating systems in apartments and private homes; precisely balances temperatures across room circuits to eliminate significant temperature disparities between the master bedroom, secondary bedrooms, and living room, enhancing overall home comfort.

2. Commercial Retail Heating Projects

Suitable for street-front shops and restaurants; balances water flow across large piping networks to prevent insufficient heating in distant sections, ensuring stable heating for commercial spaces.

3. Office Building Central HVAC Projects

Designed for centralized underfloor heating systems in office buildings; standardized specifications facilitate batch installation and unified hydraulic balancing, meeting acceptance standards for large-scale projects.

4. Retrofitting Projects for Existing Underfloor Heating

Addresses issues like flow imbalance and poor heating performance in older systems; allows for direct replacement of standard fittings without altering existing piping, enabling a cost-effective upgrade and optimization of the hydraulic system.

FAQ

Q1: What is the difference between a flow-control fitting and a standard brass fitting?

A: Standard fittings merely connect pipes without offering adjustment capabilities, failing to resolve hydraulic imbalances. This product combines connection and precise flow regulation; it allows independent control of individual circuit flows and balances temperature differences across the system, serving as a specialized accessory to optimize heating performance.

Q2: Is the adjustment precision sufficient for both residential and commercial heating needs?

A: The valve core is professionally calibrated with clear scale settings and fine adjustment capabilities, allowing for precise flow tuning. It fully meets the hydraulic balancing requirements for everything from small residential units to large-scale commercial underfloor heating systems.

Q3: Will the dual-layer sealing structure leak after long-term exposure to high-temperature circulation?

A: Pipe Fitting with Flow Control Valve features specialized EPDM gaskets for HVAC applications, which have passed rigorous long-term durability tests involving high temperatures and pressure. They resist aging and deformation during thermal cycling and ensure a tight thread seal, maintaining a leak-free state over the long term.

Q4: Does installation require modifying the existing main underfloor heating lines?

A: No modification to the main lines is required; installation is completed by simply replacing existing standard fittings. The process is simple and quick, making it suitable for both new installations and retrofitting projects.

Q5: Which common underfloor heating pipe materials are compatible?

A: This flow-control fitting is perfectly compatible with mainstream market materials such as PEX and aluminum-plastic composite (PEX-AL-PEX) pipes. It works with all standard underfloor heating manifolds, offering excellent versatility.
