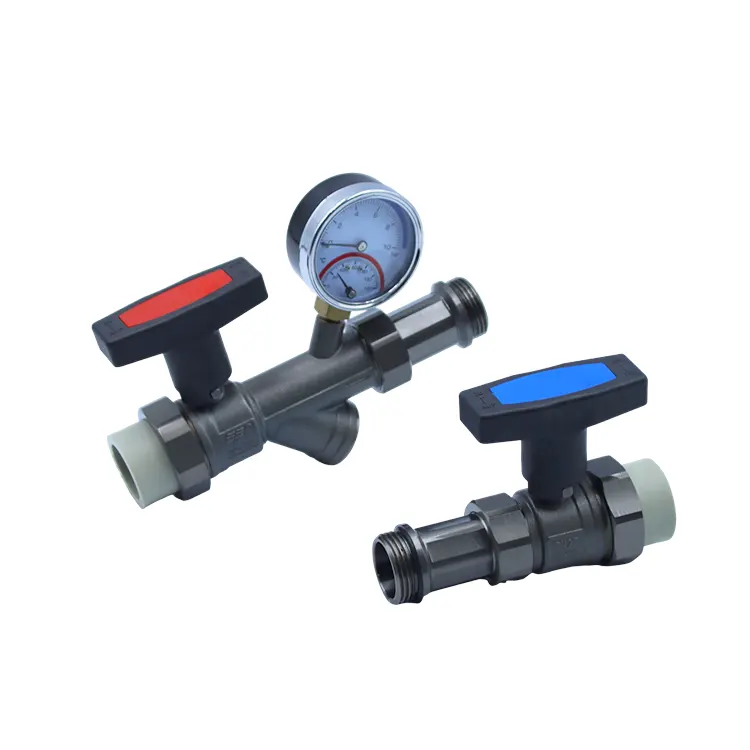

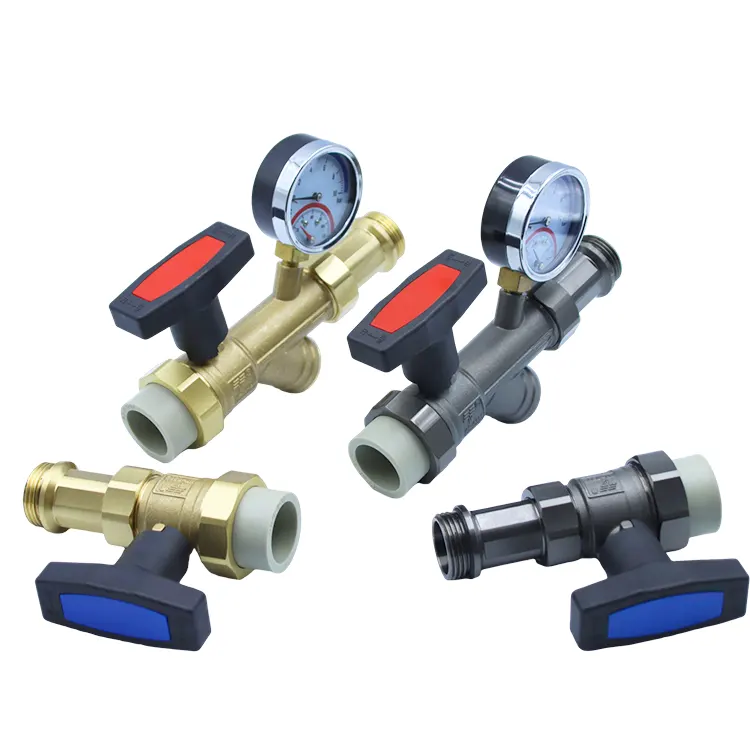

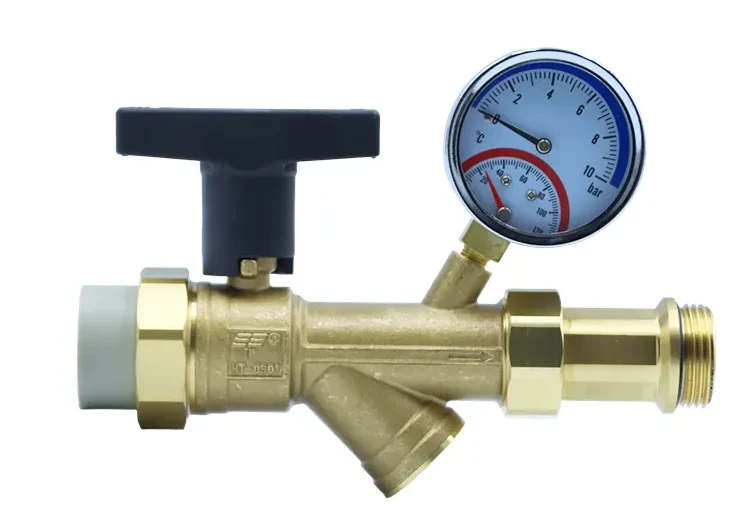

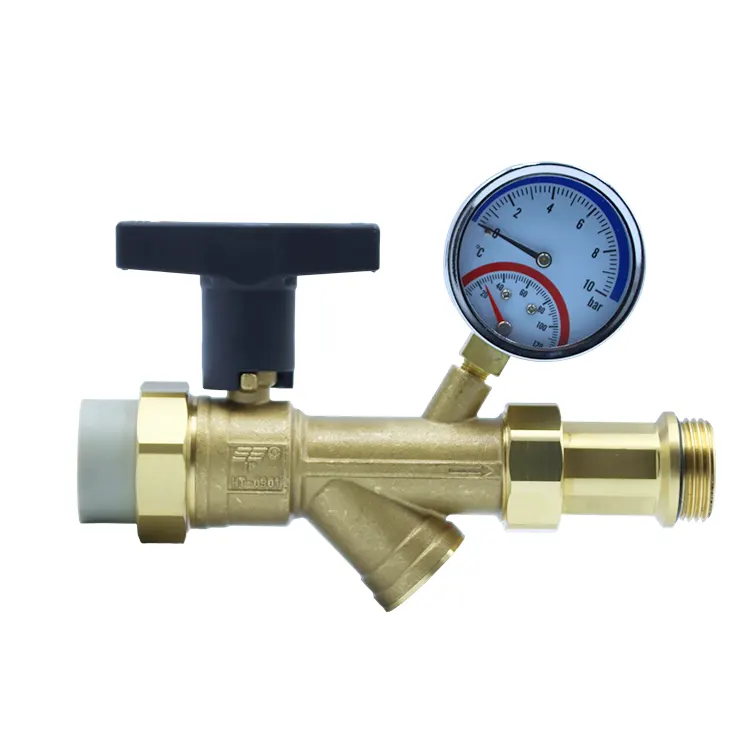

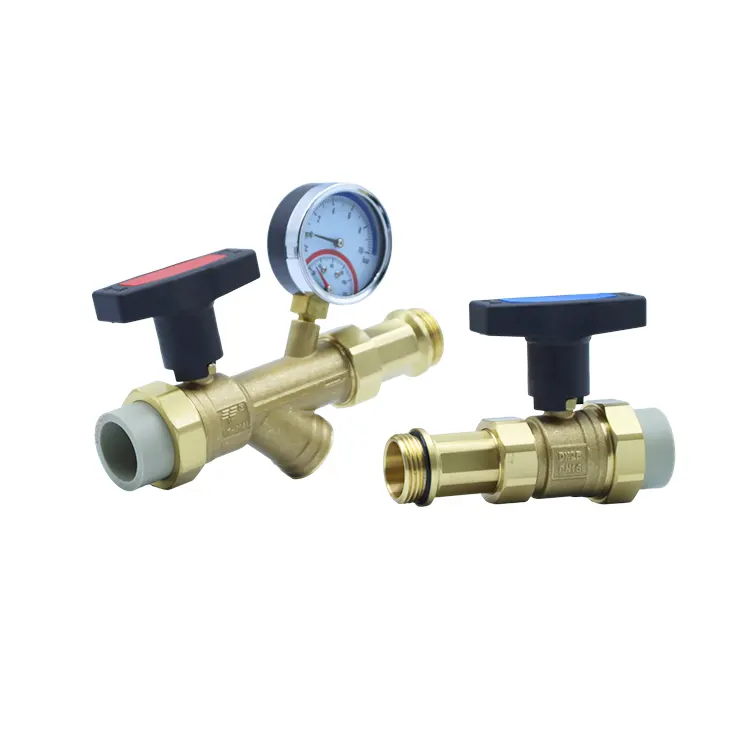

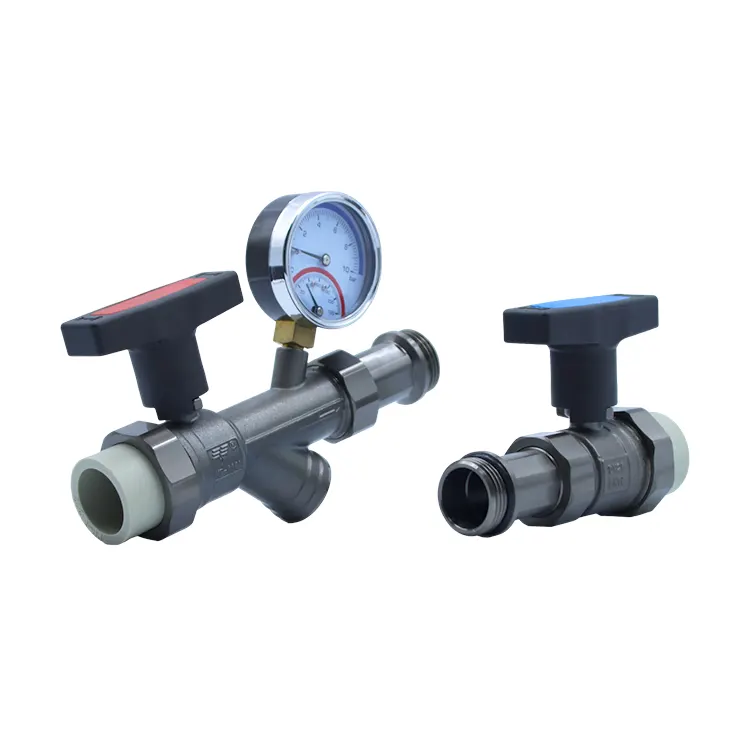

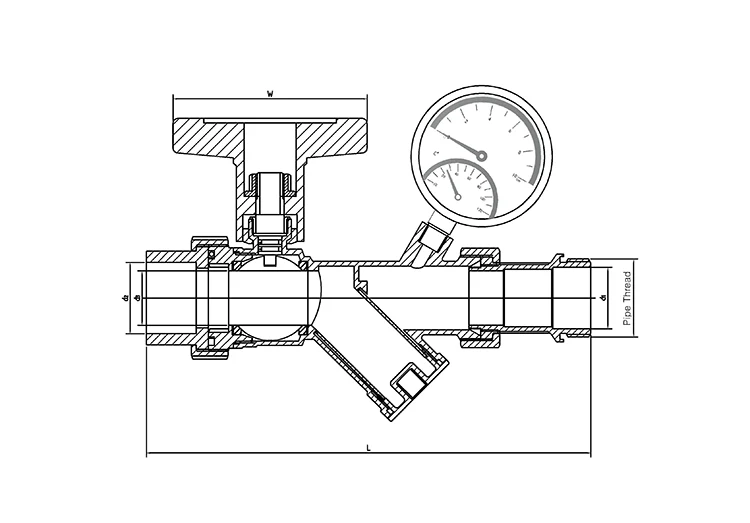

Union Type Branch Manifold Inlet Control Ball Valve

Our Union Type Branch Manifold Inlet Control Ball Valve is specially developed for the centralized water supply control scenario of the manifold. The valve body is made of thickened HPb59 lead-free forged brass and is formed as a single piece. The surface is plated with nickel to prevent rust and corrosion. The front-mounted integrated union is equipped with a high-temperature-resistant EPDM sealing gasket, allowing the valve body to be disassembled independently without cutting the pipeline, significantly simplifying the pipeline cleaning and branch fault repair processes.

It can be used as the front-end main cut-off valve of the manifold, precisely regulating the flow of multiple branch water supplies. It covers multiple standard pipe diameters for both home decoration and small HVAC projects, while also considering the adaptability for installation in narrow spaces, the advantages of non-destructive disassembly and maintenance, and the long-term stable performance of high-temperature sealing.

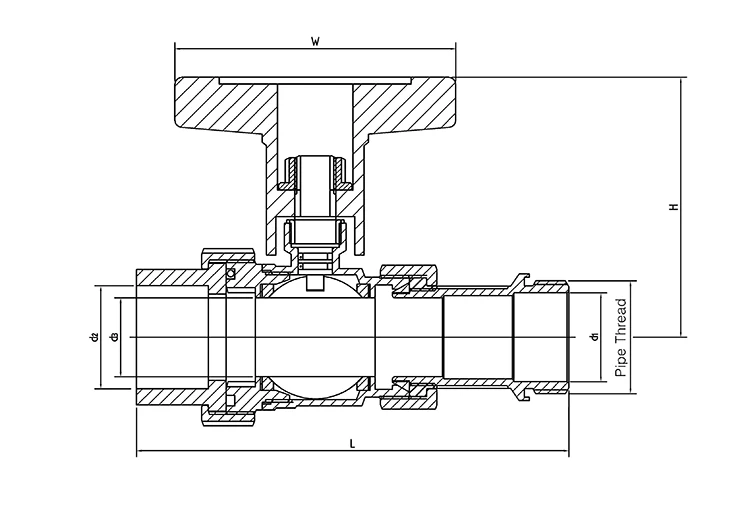

Technical parameters

Special positioning structure for the front end of the manifold water distributor

1. Adapts to the standard installation position of the water inlet of the manifold water distributor: The valve specification and thread size match the mainstream floor heating and water distribution manifold water distributor inlet on the market. It can directly serve as the main line switch for the entire water distribution system, without the need for additional reducer connectors, reducing the number of pipe leakage points.

2. Independent flow regulation design for the main line: By operating the 90° handle, the entire water inlet flow can be completely cut off or adjusted. When a single branch water distributor fails and needs maintenance, this valve can be closed, and the entire water distribution branch stops supplying water. The operation is simple and convenient for system management.

3. Compact short handle design suitable for the narrow space of the floor heating box: Combined with the 90° short control handle, the lateral occupied space is extremely small. The standard floor heating manifold water distributor box, wall cavity, and ceiling narrow pipelines can be opened and closed without any obstruction, and will not be blocked by insulation layers or sheet metal.

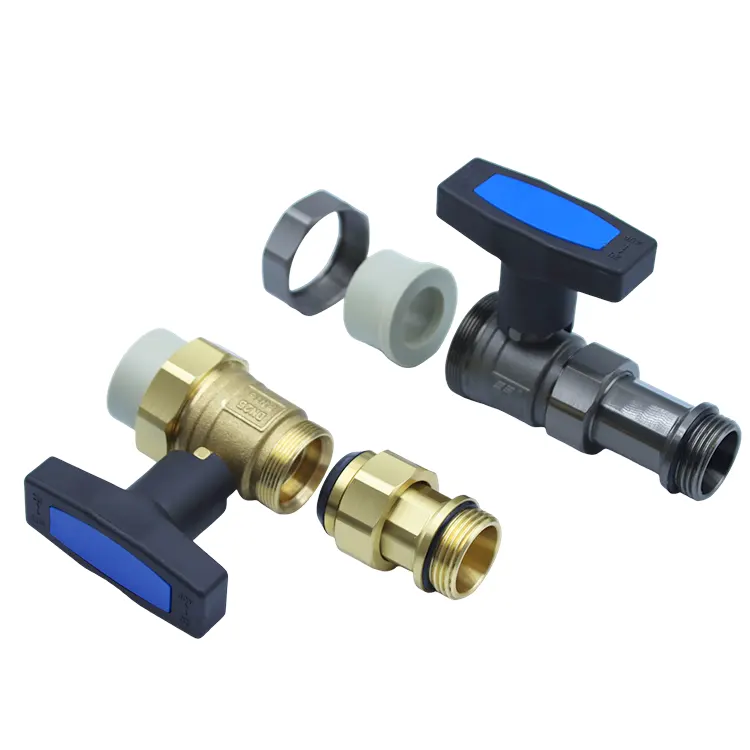

The integrated union fitting is made of a detachable structure.

1. The independent split structure of the union fitting allows for disassembly without cutting the pre-installed pipeline: The front end integrates the entire union nut and EPDM sealing gasket. During later valve body blockage, aging of the seal, and cleaning of the water distribution system, simply loosening the union nut allows the valve to be removed. The pre-installed copper pipe and floor heating pipeline are completely retained, eliminating the need for re-cutting the pipe, expanding the orifice, and welding processes.

2. The high-temperature resistant EPDM union gasket is suitable for cold and hot cycle working conditions: It is equipped with a dedicated polyetherethylenetetramine rubber sealing gasket, which can withstand the high-temperature circulating water of floor heating. It will not harden, shrink, or crack under long-term alternating cold and hot conditions. After the union thread bites together, the seal is tight, eliminating the risk of slow water leakage at the interface.

3. Standardized thread matching tolerance, slow performance degradation after multiple disassemblies: Special calibration of the internal and external thread bite accuracy of the union fitting at the factory. The thread profile is regular, and the tightness is moderate. After multiple disassemblies, the deformation amplitude of the sealing gasket due to compression is small. After maintenance and reinstallation, it still maintains the airtight and zero leakage standard.

Thickened nickel-plated HPb59 brass valve body

1. One-piece hot forging process for HPb59 lead-free brass: The Union Type Branch Manifold Inlet Control Ball Valve adopts a hot forging one-piece molding process. The wall thickness of the valve body is uniformly thickened, the structure is dense without sand holes or pores, and its pressure-bearing capacity is much better than that of ordinary die-cast valve bodies. It can stably withstand the instantaneous water pressure shock during the start and stop of the heating system and water supply system, and is not prone to bulging or cracking.

2. Overall nickel plating surface anti-rust treatment, resistant to scale and oxidation: The external surface of the valve body is completely plated with nickel to protect the brass substrate from direct contact with water vapor and minerals in the water. Long-term water flow does not easily cause oxidation rust spots accumulation, maintaining a neat appearance while extending the service life of the valve body.

3. Lead-free environmentally friendly base material in line with home decoration water supply standards: The brass raw material undergoes spectral testing, with lead content meeting standards and no heavy metal emissions. It can be safely used in all-home direct drinking water and water circulation pipelines for heating systems, meeting the environmental protection standards for home water and heating materials.

Full diameter sealed pressure-bearing combination

1. Unshrunken full diameter chrome-plated solid ball core, minimizing water loss: The internal ball diameter is consistent with the inner diameter of the pipeline, without throttling or constricted protrusions. The water circulation resistance is extremely low, and there will be no problems such as uneven water distribution in multi-path diversion or excessive temperature difference in floor heating heating. The pipeline design's water flow rate is completely retained.

2. Thickened PTFE (polytetrafluoroethylene) valve seat, bidirectional airtight anti-seepage for hot and cold water circuits: The ball seat is made of thickened polytetrafluoroethylene material, with a smooth and wear-resistant surface that is resistant to medium corrosion. Under the impact of both cold and hot water flows in the forward and reverse directions, it can closely fit the ball core and achieve bubble-level zero leakage. There will be no sealing aging and water leakage during the continuous heating circulation throughout the year.

3. Double-layer sealed anti-blowout valve stem, avoiding safety hazards caused by high-temperature water pressure fluctuations: The valve stem adopts an internal double-layer seal + bottom locking structure. When the heating system and water supply system start or stop, generating instantaneous high pressure, it firmly fixes the position of the valve stem, preventing the valve stem from popping out and hot water from splashing, enhancing the safety of the sealed box and pipeline operation.

Specialized grade control system for HVAC water supply pipe fittings

1. Pre-spectral component verification of brass raw materials, to determine the standard for high-temperature water supply materials: All HPb59 brass forging blanks are subject to batch-based spectral physical and chemical testing, strictly controlling lead-free content, anti-deoxidation, high-temperature resistance, and anti-compression core indicators. Unqualified blanks with substandard materials are eliminated from the raw material source.

2. Independent high-temperature durability water pressure test for sealing components: The flexible coupling EPDM gasket and valve seat PTFE sealing piece are tested separately for high-temperature cyclic aging and high-pressure water tightness. Unqualified sealing components prone to deformation and leakage in high-temperature environments are screened out in advance.

3. 100% comprehensive performance inspection of finished products: Each Union Type Branch Manifold Inlet Control Ball Valve is completed with shell water pressure pressure resistance test, bubble-type air tightness leak detection test, and 10,000 times reciprocating opening and closing durability test, fully verifying the pressure-bearing limit of the valve body, sealing reliability, and smoothness of the handle switch.

4. Specialized structure-specific precision verification: Focus on detecting the accuracy of the flexible coupling thread fit, the balance degree of water flow distribution in the main water distribution path, and the standard opening and closing torque of the handle. Targeted measures are taken to avoid three types of frequent faults in the water distribution system: leakage at the flexible coupling interface, imbalance of multi-path water distribution flow, and stuckness of the handle switch.

5. Full batch traceability + complete engineering compliance qualifications: Each valve is engraved with an independent and exclusive batch code. The process data of forging, threading, assembly, and testing are permanently archived for complete traceability. For each shipment, a copper material spectral test report, factory water pressure air tightness certificate, and CE compliance certification can be provided simultaneously, meeting all requirements for home decoration HVAC acceptance, cross-border equipment customs clearance, and small-scale heating project bidding filing.

Full-cycle comprehensive service

1. Dedicated installation and pressure testing technical guidance for the water distribution system: Professional technical specialists provide one-on-one guidance on the assembly specifications of the front-end valves of the distribution and collection water devices, the control of tightening force of the union nuts, the overall waterway sectional pressure testing, and the specific troubleshooting and practical operation plans for leakage faults of the union and valve seat. This reduces the time for rework during on-site installation and debugging.

2. 24/7 online customer service in multiple languages to adapt to global purchasing time differences: Provide multi-language online consultation services for water supply and heating wholesalers, floor heating engineering contractors, and heating equipment manufacturers worldwide. Quickly respond to requirements such as selecting components for the working conditions, assembly questions, reporting of after-sales faults, and tracking the progress of batch orders.

3. Customized comprehensive solutions for batch heating water supply projects: For large-scale home decoration group purchases, small-scale heating projects in shops, and large-scale orders for water purification equipment and pipeline systems, a unified selection and matching solution can be customized based on the specifications of the distribution and collection water devices and the pressure parameters of the pipelines. This optimizes the layout of the entire water distribution system pipelines.

4. Long-term stable supply of original factory replacement parts and 12-month whole machine original factory warranty: Long-term and stable supply of original factory EPDM union sealing gaskets, union nuts, PTFE valve seats, and other easily damaged replacement parts; All inlet unions of the distribution and collection water devices enjoy a 12-month original factory whole machine warranty. In normal cold and hot water circulation water supply conditions, if there are original quality problems such as valve body cracking, union leakage, sealing failure, and handle jamming caused by raw materials and factory production processes, free technical rectification and replacement part support can be provided.

Application scenarios:

1. Main water supply pipeline for the entire home floor heating manifold: As the main cut-off valve at the front end of the floor heating manifold for household residences, the narrow floor heating box is compatible with short handles for operation. The flange connection allows for disassembly without damaging the pipeline, facilitating pipeline cleaning and flushing before each heating season. The full-diameter design ensures uniform water flow distribution throughout the home floor heating system, eliminating issues of uneven heating in certain areas.

2. Front pipeline of the entire home cold and hot water distribution manifold: Compatible with the inlet of the household floor heating manifold at the entrance, made of non-chrome-plated brass material, suitable for direct drinking water pipelines. The flange structure is convenient for later maintenance and replacement of water purifier filters and branch water distribution circuits, without damaging the pre-installed water supply pipelines in the walls.

3. Small-scale HVAC circulation manifold system for commercial spaces and offices: Complementary to the floor heating distribution equipment for street-front commercial spaces and small office spaces. Customizable specifications for large-scale commercial heating projects. The nickel-plated valve body is resistant to corrosion from the damp environment in commercial spaces. The main flow regulation function is suitable for controlling heating in multiple areas of large commercial spaces.

4. Internal branch water pipeline of small-scale water purification and circulation equipment: Inlet control valve for the distribution manifold of small-scale water treatment equipment and experimental circulation devices. Resistant to high temperatures and seals for alternating cold and hot circulation media. Compact structure suitable for installation in the narrow spaces within the equipment, and the flange connection allows for easy disassembly for regular maintenance and inspection.

FAQ

Q1: As a pre-valve before the water manifold, what are the core differences and advantages of the Union Type Branch Manifold Inlet Control Ball Valve compared to ordinary fixed ball valves?

A: Ordinary fixed threaded ball valves cannot be disassembled once they are installed by thread connection. Once the seals age or the valve body gets clogged, the pre-installed pipelines must be cut and new pipes and valves replaced—resulting in extremely high labor and material costs. This product features a front-mounted integrated union design that allows the valve body to be removed independently without cutting the pipe. During floor heating or water supply system maintenance, flushing, or inspection, the pre-installed pipelines remain completely intact. This significantly reduces the long-term operation and maintenance costs of the manifold system and makes it a specialized, upgraded valve component for the front end of the water manifold.

Q2: Will the EPDM sealing gasket of the union deteriorate and leak over time in the long-term high-temperature water circulation of the floor heating system?

A: No. The union is equipped with an industrial-grade high-temperature EPDM (ethylene propylene diene monomer) rubber gasket. It has undergone over 1,000 cycles of high-temperature water circulation aging tests at the factory. It can withstand the long-term 60°C+ hot water circulation typical of floor heating systems and will not harden, shrink, or crack under alternating hot and cold temperature conditions. Once the union nut is tightened, the threads engage evenly, ensuring balanced compression on the gasket—making slow leaks over time highly unlikely.

Q3: How does the full-bore ball core of this product improve the heating performance of the floor heating manifold system?

A: Ordinary ball valves often have a reduced-diameter throttling structure inside, which causes significant pressure loss as water flows through and can easily lead to uneven water distribution across the manifold—resulting in some rooms not heating properly or having large temperature differences. This product features a full-bore ball core with the same diameter as the pipe, resulting in extremely low flow resistance. Water distribution across multiple branches remains balanced and stable. The entire floor heating system heats uniformly, and there is no need to increase the circulation pump power, reducing equipment energy consumption over long-term use.

Q4: What water pressure emergencies can the double-layer sealing valve stem prevent in the manifold system?

A: When the circulation pump in a floor heating or domestic water supply system starts or stops, or when water pressure fluctuates in high-rise zones, the pipeline can experience sudden pressure surges. Standard single-seal valve stems are prone to being forced upward by water pressure, creating gaps that lead to leaks or hot water spray-out. This product features a bottom-locking double-layer seal stem structure that absorbs sudden high-pressure shocks and securely anchors the stem, eliminating the risk of water leakage inside the narrow confines of floor heating manifold cabinets.

Q5: How does the factory's precision check of the union threads prevent concealed leakage in the manifold system?

A: If the union thread engagement accuracy is insufficient, the gasket may be compressed unevenly and deform over time, leading to slow leaks that are difficult to detect until they damage the manifold cabinet or surrounding finishes. Our factory calibration ensures precise thread alignment and uniform gasket compression, preventing micro-leakage under long-term high-temperature cycling and ensuring reliable sealing in concealed installations.

Q6: In the narrow and sealed floor heating manifold box, will the short handle be blocked by insulation and unable to open or close?

A: No. The valve body features a compact overall structure and can be fully wrapped in floor heating insulation, with only the short 90° handle slightly protruding outward. No large operating clearance is required. Within standard manifold cabinet spaces, the handle can easily switch between fully open and fully closed positions without obstruction or binding, ensuring convenient daily flow control.
